Read MoreHardware

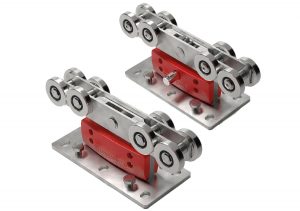

CGS – 500.8P
Large Integrator Carriage Set
This set comes with a driven primary carriage and a secondary carriage. The drive pinion casing provides protection and gives a clean finished look.

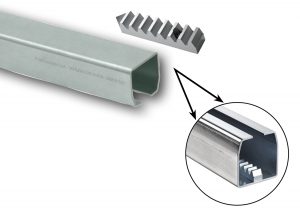

CGS – 345P
Large galvanized track
Build the gate right on the track. Galvanized steel track’s structural properties allow high loads without distortion. The track is made from low carbon steel alloy for excellent weldability. Available in 20’ and 10’ lengths.

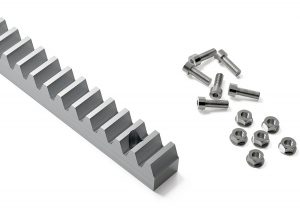

CG – 50P
Gear Rack
This gear rack mounts to the top, inside the galvanized track completely hiding the drive system. The gear in the primary carriage drives the track and the gate with no exposed hardware for complete protection.
CGS – 347P
End Wheel for UL325 Compliance
The End Wheel bolts into each end of the track and complies with UL325 safety code for automated gates. It gives a finished look and prevents dirt, snow, etc. from getting inside the track and interfering with the operation of the carriages. The wheel allows the gate to roll into the bottom end cup without scraping the paint or galvanized coating.
CGS – 346P
Bottom End Cup
This cup receives the track in either the closed or open position. The beveled leading edge allows for a smooth entry and stop. The cup holds the gate steady, reducing vibrations from wind conditions, etc., and prolongs the life of the carriages and gate operators.
CG – 15P
Adjustable Mounting Bracket
The mounting bracket is used for the bottom end cup and gate receiver and is horizontally adjustable to easily align with the gate frame. It allows them to be mounted to the side of the receiving post for UL325 compliance.
CG – 30M
Gate Receiver, 2” to 3”
The adjustable gate receiver fits the gate frame size. The nylon rollers reduce scraping the paint and galvanized coating. The receiver holds the gate in position while closed, reducing movement caused by the wind or people trying to push through the gate.
CGI – 40
Tension Bars - Stainless Steel
The tension bar acts as a turnbuckle and builds in gate adjustability to moderate long term sag and post movement problems. Fits into 50mm square tubing and can be adapted to use in Imperial tubing sizes.
CG – 348 – M16
J-Bolt, Galvanized
Galvanized J-Bolts are set into the concrete pad as it is poured. Once it has cured, the carriages are then secured to the pad using these bolts. J-Bolts are the preferred method of anchoring the carriages to the concrete pad. Wedge anchors with two-part epoxy will work but need to be sized to each load according to manufacturer’s recommendations.

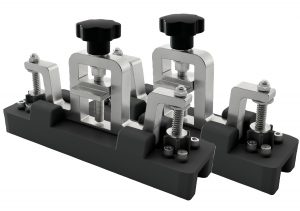

CG – 55P
Gear rack centering device
Two piece set, reusable. Use this installation tool to accurately center and align the gear rack inside the track. It centers the rack down the length of the track, aligns the teeth at rack joints to prevent gear binding, and acts as a drilling jig to hold the rack into place as the mounting holes are drilled.

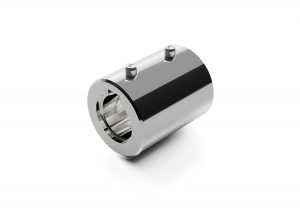

CG – 58
Drive Shaft Coupling
This coupling connects the output driveshaft of the gate operator directly to the input driveshaft on the primary carriage. This gives a direct, secure and safe connection between the motor and the gate. Specify gate operator and/or specs on output driveshaft.
CG – 05P
Foundation Plate
The foundation plate provides a solid base for leveling the carriage on the pad. It prevents the leveling screws from digging into the pad and causing long term alignment issues. By keeping the carriage bottom from being in direct contact with the concrete pad, it slows down corrosion effects.

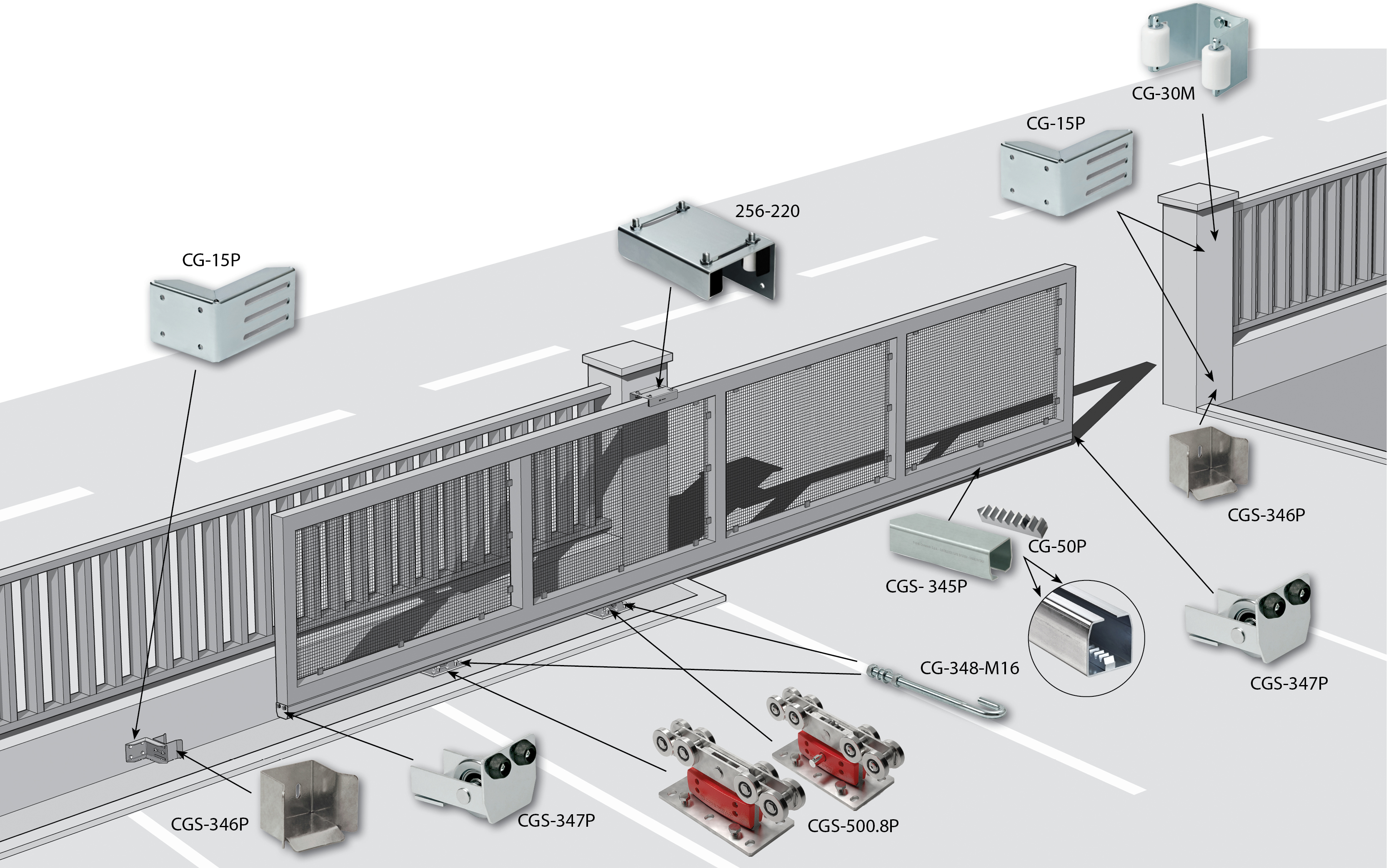

GATE HARDWARE PLACEMENT
TOP GUIDES FOR GATE WITH STRAIGHT TOP
-
255 - 220 - C
ADJUSTABLE GUIDING PLATE FOR UP TO 2-3/8" FRAMES
Top guide assembly with 4 covered guide rollers, 1-1/4" diameter, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 220
ADJUSTABLE GUIDING PLATE FOR UP TO 3" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/4" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 300
ADJUSTABLE GUIDING PLATE FOR UP TO 4-1/2" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/2" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
TOP GUIDES FOR GATE WITH ARCHED TOP
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
253
10" NYLON SIDE ROLLER 1-1/4" DIA., 2" CLEARANCE
Side rollers are an alternative top guide. Useful especially when arched tops or other architectural features do not easily accommodate horizontal U-channels in the design.
