Project Gallery
Residential wood on steel picket gate with an All-O-Matic SL100DC operator.
The owners of this Portsmouth, NH home needed a gate that fit in with the look and feel…
Read More
Wood and Steel Framed Gate
Our client, Jose, wanted a sleek sliding gate system for his residence. Since the gate was lightweight, he…
Read More
Sliding Gate in the Philippines
This After weeks of planning, our client in the Philippines is now enjoying his sliding gate using DuraGates…
Read More
Cantilever Gate in Iowa Backyard
Our DuraGates hardware can be used almost anywhere. Read what our client Shawn had to say. "My wife wanted a…
Read More
Small Sliding Walkway Gate in Austin, Texas
Our client, John, wanted easy access to his backyard from the front driveway. He decided that our cantilever sliding gate…
Read More
Steel Driveway Gate in Seattle Washington
This homeowner wanted a sliding gate that would block off their driveway from the alley. John at Signature Quality Landscape…
Read More
Stained Glass Flower Gate
WOW, what a gate! This sliding gate, fabricated by Peter at Red Star Ironworks, is the epitome of a gate…
Read More
Vinyl Gate at Residence in Arizona
This sliding gate has been built using vinyl pickets and a vinyl frame. Sleek and lightweight this gate uses model…
Read More
Automated Wooden Gate at a Residence in New York
Our client, Paul, wanted a sliding gate that could be automated and also built to match his existing fence. He…
Read More
Sliding Porch Gate in Seattle, WA
A swing gate on this porch was not feasible. If the gate were to swing either in or out it…
Read More

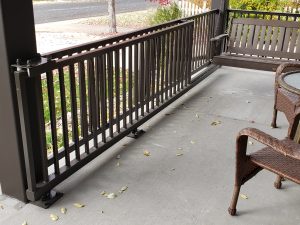

Sliding Gate on Front Porch
Due to the hardware's versatility, this gate was fabricated to match the deck rails on a porch in order to…
Read More
Residential Cantilever Gate in Portland, Oregon
The homeowner at this residence in Portland, Oregon wanted a driveway gate that would match her existing fence. With DuraGates,…
Read More
White Picket Gate at Residence in California
The family at this suburban California home was looking for an automated gate system that would match their…
Read More
Ornate Wooden Gate at Rental Property
This beautiful wood gate welcomes visitors to a rental property in Florida. Miloe Rental Properties was looking for a cantilever…
Read More
Simple Wood Gate at a Residence in Florida
The homeowner wanted an easy to slide gate that matched the style of the surrounding fence. Stargardt & Associates, Valrico,…
Read More
Chain Link Sliding Gate at Contractor Yard
DuraGates hardware is the perfect solution for industrial sliding gates. The smallest galvanized track model, CGS-250.8M, was used…
Read More
Wood Framed Cantilever Sliding Gate in Tucson, AZ
Our DuraGates Cantilever sliding gate hardware model, CGS-250.8M, was used in this gate installation. Notice the rugged terrain at the…
Read More
Warehouse Double Sliding Security Gate
DuraGates gate hardware will work well in all applications. This double cantilever sliding gate has been installed at a warehouse…
Read More
Sliding Wood Gate at Residence in Missouri
With DuraGates sliding gate hardware, any material can be used to fabricate a gate. At this residence, the wood gate…
Read More
Double Sliding Gate in Georgia
This beautiful double sliding gate comes together perfectly in the center of the driveway creating a seamless look at this…
Read More
Wooden Residential Gate
This residential, sliding patio gate provides privacy for this home. The gate uses our CGS-250.8M model. This is our smallest…
Read More
Residence Washington State
This residential, wood sliding gate fits perfectly in the tight space at this home in Washington State. The smallest galvanized…
Read More
Toboggan Chutes at Cleveland Park
Clever use of our DuraGates sliding gate hardware Model CGS-250.8M. The team at Cleveland MetroParks installed two DuraGates systems for…
Read More
Food Processing Plant
Our customer, Nutrient Foods, had a creative way to use our DuraGates sliding gate hardware. The use of…
Read More
Private Residence
This vinyl privacy fence slides neatly out of the way to accommodate the tight yard space. Notice how…
Read More
Private Residence
The owner of this private residence was looking for a creative way to have a small sliding gate on his…
Read More
Wine region in California
Check out this really funky installation. DuraGates hardware worked in this most challenging of ground conditions for this gate. The…
Read More
Private Residence in Saint Louis, MO
This very simple vinyl gate has been mounted on an aluminum frame for support. Our smallest model, the CGS-250.8M was…
Read More
Residence Salt Lake City
Our client in Salt Lake City is now enjoying his sliding gate using DuraGates hardware. The working space was tight…
Read More
Private Residence in California
This home owner built the gate himself using the CGS-250.8M model seamlessly attaching the wood gate to the…
Read MoreHardware
CGS – 250.8M
Small Multiplate Carriage Body
Multiplate carriage body with 8 wheels and sealed bearings. Large pivot allows for increased weight capacity, smooth sliding and stability. Larger wheel dimensions increase the weight capability and reduce wear and tear between wheels and tracks.
CGS – 245M
Small Galvanized Track
The tracks are galvanized and structurally sound which gives them flexibility and permits carrying high loads without distortion. You can build the gate right on the track. The track is made from low carbon steel which allows for excellent weldability.
CGS – 347M
End Wheel for UL325 Compliance
The End Wheel bolts into each end of the track and complies with UL325 safety code for automated gates. It gives a finished look and prevents dirt, snow, etc. from getting inside the track and interfering with the operation of the carriages. The wheel allows the gate to roll into the bottom end cup without scraping the paint or galvanized coating.
CGS – 346M
Bottom End Cup
This cup receives the track in either the closed or open position. The beveled leading edge allows for a smooth entry and stop. The cup holds the gate steady, reducing vibrations from wind conditions, etc., and prolongs the life of the carriages and gate operators.
CG – 15M
Adjustable Wall Mounting Bracket
The mounting bracket is used for the bottom end cup and gate receiver and is horizontally adjustable to easily align with the gate frame. It allows them to be mounted to the side of the receiving post for UL325 compliance.
CG – 30M
Gate Receiver, 2” to 3”
The adjustable gate receiver fits the gate frame size. The nylon rollers reduce scraping the paint and galvanized coating. The receiver holds the gate in position while closed, reducing movement caused by the wind or people trying to push through the gate.
CGI – 40
Tension Bars - Stainless Steel
The tension bar acts as a turnbuckle and builds in gate adjustability to moderate long term sag and post movement problems. Fits into 50mm square tubing and can be adapted to use in Imperial tubing sizes.
CG – 348 – M16
J-Bolt, Galvanized
Galvanized J-Bolts are set into the concrete pad as it is poured. Once it has cured, the carriages are then secured to the pad using these bolts. J-Bolts are the preferred method of anchoring the carriages to the concrete pad. Wedge anchors with two-part epoxy will work but need to be sized to each load according to manufacturer’s recommendations.

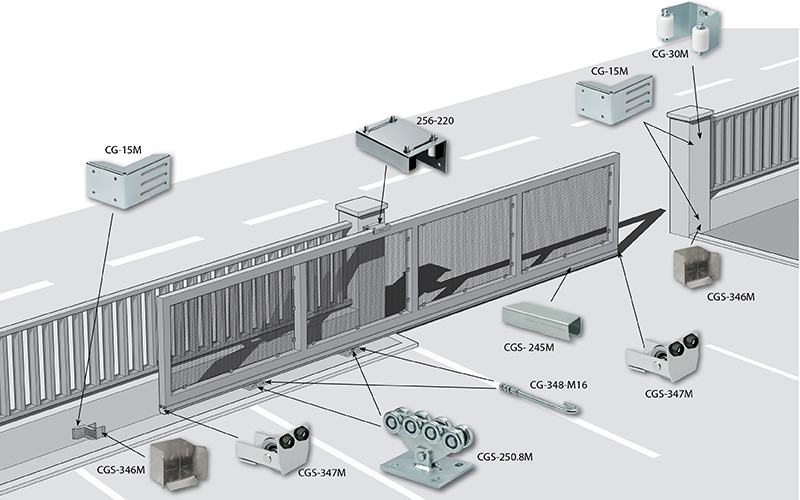

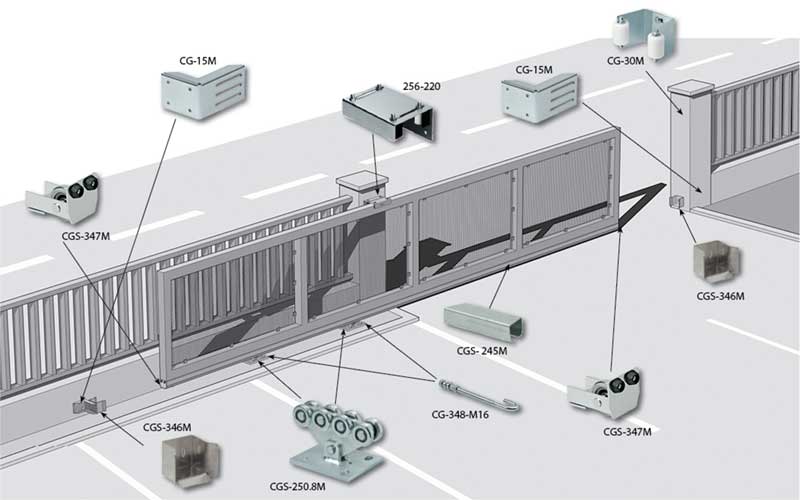

GATE HARDWARE PLACEMENT
TOP GUIDES FOR GATE WITH STRAIGHT TOP
-
255 - 220 - C
ADJUSTABLE GUIDING PLATE FOR UP TO 2-3/8" FRAMES
Top guide assembly with 4 covered guide rollers, 1-1/4" diameter, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 220
ADJUSTABLE GUIDING PLATE FOR UP TO 3" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/4" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 300
ADJUSTABLE GUIDING PLATE FOR UP TO 4-1/2" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/2" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
TOP GUIDES FOR GATE WITH ARCHED TOP
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
253
10" NYLON SIDE ROLLER 1-1/4" DIA., 2" CLEARANCE
Side rollers are an alternative top guide. Useful especially when arched tops or other architectural features do not easily accommodate horizontal U-channels in the design.
