Benefits
- Higher weight capacity
- Works with any gate material
- Smaller overall gate length
- Reduces load on gate operator
- Low maintenance
- Minimal visible hardware
- Cost effective compared to traditional cantilever hardware
- Easy to install
- Durable even for high traffic applications
DuraGates cantilever gate hardware offers a trouble free and easy to install solution for sliding gates!
This simple, yet heavy duty system can handle almost all sliding gate applications. Sealed bearings and covered rollers avoid many of the usual maintenance and efficiency problems due to weather elements. They also help comply with UL325 and ASTM F2200 gate safety standards.
All products are manufactured in Italy by Fratelli Comunello, the world leaders in gate hardware. The technical innovation in the system, as compared to a traditional sliding gate, lies in the fact that the entire gate is cantilevered off the ground without any rollers traveling on the ground. This allows for free movement of the gate in uneven ground conditions and reduces the wear and tear on the gate and on any installed gate automation. The sealed bearings on the carriage assembly require no maintenance or lubrication. Besides, it gives the gate a nice clean look with minimal visible hardware. This engineered solution also reduces the length of the counterbalance resulting in a smaller overall gate length.
The bottom track is available in galvanized steel, aluminum track and stainless steel and can accommodate a solution for every type of rolling gate project. By welding or mechanically fastening the gate to the bottom track, DuraGates sliding gate system can be used with any gate material such as steel, wood, vinyl, aluminum, chain link, etc.
The model selection depends on the combination of the size of the opening and the weight of the gate. Based on the combination, several models may fit your project. The heavier the model, the smaller the counterbalance (tail of the gate) which becomes increasingly important when you have a tight space. Our cantilever gate configurator will provide you the optimal selection of model along with dimensions of the tail of the gate, the position of the carriages and the foundation size required.
The hardware, combined with a range of high-quality gate automation we offer, is truly a long lasting and complete solution for any cantilever sliding gate. Send us your sliding gate details for a customized gate configuration.
Request a Quote
GALVANIZED STEEL TRACK MODELS
-
CGS - 250.8M
OPENING WEIGHT : Up to 900 lbs
GATE OPENING : Up to 13 ft
This mini version can still handle a 1000lb gate and is a perfect option for not only residential properties but also for many light-duty commercial sliding gate applications. Also used wherever a sliding barrier or privacy is desired such as decks, trash enclosures, loading docks, ramps, etc. A versatile and economical system.
-
CGS - 250.8P
OPENING WEIGHT : Up to 1300 lbs
GATE OPENING : Up to 19 ft
This model can accommodate light to medium weight gates and is commonly used for a wide variety of commercial and residential installations.
-
CGS - 350.8P
OPENING WEIGHT : Up to 1700 lbs
GATE OPENING : Up to 26.4 ft
Recommended for medium size commercial rolling gates or large decorative wrought iron estate gates.
-
CGS - 350.8G
OPENING WEIGHT : Up to 4050 lbs
GATE OPENING : Up to 59.4 ft
This cantilever gate hardware model is recommended for large and heavy industrial or commercial sliding gates, especially in high traffic applications.
INTEGRATOR GALVANIZED STEEL TRACK MODELS
-

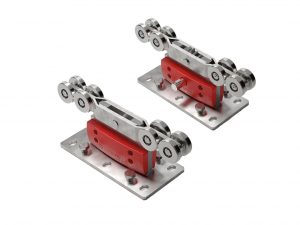

CGS - 500.8M
OPENING WEIGHT : Up to 1100 lbs
GATE OPENING : Up to 23 ft
Small Carriage set with integrated drive system connects directly to the gate operator and hides the mechanics within the track for a safe, protected installation. 8 wheels with noiseless shielded bearings protect against dust and increase service life. This Small model is a preferred solution for many residential properties and light duty commercial applications. Automation Ready!
-
CGS - 500.8P
OPENING WEIGHT : Up to 1760 lbs
GATE OPENING : Up to 26 ft
Large Carriage set with integrated drive system connects directly to the gate operator and hides the mechanics within the track for a safe, protected installation. 8 wheels with noiseless shielded bearings protect against dust and increase service life. The Large model is a good solution for large residential gates, most commercial applications, and light weight industrial applications. Automation Ready!
-
CGS - 500.8G
OPENING WEIGHT : Up to 2645 lbs
GATE OPENING : Up to 52 ft
Grande Carriage set with integrated drive system connects directly to the gate operator and hides the mechanics within the track for a safe, protected installation. 8 wheels with noiseless shielded bearings protect against dust and increase service life. The Grande model is the solution for heavy ornate residential gates, heavy or wide commercial applications, and heavy duty, high cycle industrial gates. Automation Ready!
ALUMINUM TRACK MODELS
-
CGA - 350.5M
OPENING WEIGHT : Up to 550 lbs
GATE OPENING : Up to 16 ft
Our light duty aluminum hardware is used for residential and commercial sliding gates, especially where the application calls for an aluminum gate.
-
CGA-350.5P
OPENING WEIGHT : Up to 708 lbs
GATE OPENING : Up to 26.4 ft
This rolling gate model is recommended for commercial or residential applications. The heavy duty track extrusion is perfectly weldable for aluminum gates.

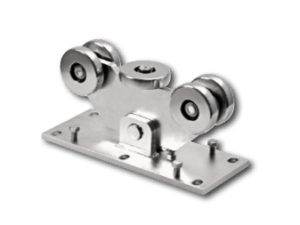

STAINLESS STEEL TRACK MODEL
-
CGI - 350.8P
OPENING WEIGHT : Up to 880 lbs
GATE OPENING : Up to 14.5 ft
Available for those jobs that specify a stainless steel cantilevered gate system.

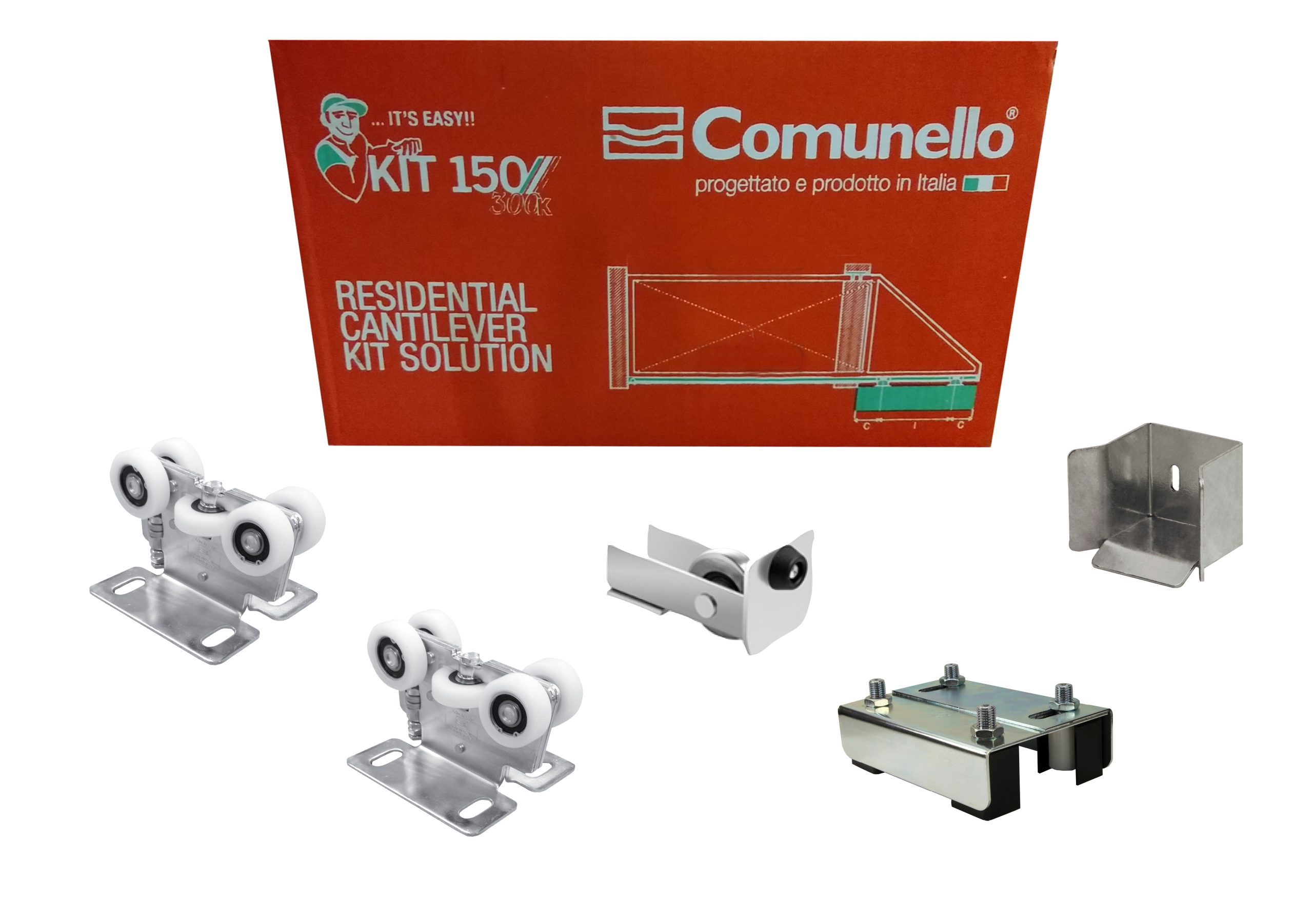

KIT FOR SMALL GATES
-
CGS - Kit150
OPENING WEIGHT : Up to 660 lbs
GATE OPENING : Up to 13 ft
An economical cantilever gate hardware kit for lightweight gates.
HARDWARE FOR EXTRA LARGE GATES
-
CGS - 350.5XL
OPENING WEIGHT : Up to 7700 lbs
GATE OPENING : Up to 65 ft
This model offers a cantilever sliding gate solution for large heavy duty gates.
