CGS – 350.5XL

Project Gallery

Hardware

  • CGS-350.5XL

    EXTRA LARGE MONOBLOC CARRIAGE BODY

    Heavy duty 5 wheel carriages with sealed bearings. Large pivot allows for increased weight capacity, smooth sliding and stability. Larger wheel dimensions increase the weight capacity and reduce wear and tear between wheels and tracks.

  • CGS-345XL

    EXTRA LARGE GALVANIZED TRACK

    The tracks are galvanized and structurally sound which gives them flexibility and permits carrying high loads without distortion. You can build the gate right on the track. The track is made from low carbon steel which allows for excellent weldability.

  • CGS-346XL

    Bottom End Cup for Track

    This cup receives the track in either the closed or open position. The beveled leading edge allows for a smooth entry and stop. The cup holds the gate steady, reducing vibrations from wind conditions, etc., and prolongs the life of the carriages and gate operators.

  • CG – 30P

    GATE RECEIVER, 3-3/8" to 4-1/2"

    The adjustable gate receiver fits the gate frame size. The nylon rollers reduce scraping the paint and galvanized coating. The receiver holds the gate in position while closed, reducing movement caused by the wind or people trying to push through the gate.

  • CGS-347XL

    End Wheel for Track

    The End Wheel bolts into each end of the track and complies with UL325 safety code for automated gates. It gives a finished look and prevents dirt, snow, etc. from getting inside the track and interfering with the operation of the carriages. The wheel allows the gate to roll into the bottom end cup without scraping the paint or galvanized coating.

  • CG – 15G

    Adjustable Wall Mounting Bracket

    The mounting bracket is used for the bottom end cup and gate receiver and is horizontally adjustable to easily align with the gate frame. It allows them to be mounted to the side of the receiving post for UL325 compliance.

  • CG – 348 – M20

    J-Bolt, Galvanized

    Galvanized J-Bolts are set into the concrete pad as it is poured. Once it has cured, the carriages are then secured to the pad using these bolts. J-Bolts are the preferred method of anchoring the carriages to the concrete pad. Wedge anchors with two-part epoxy will work but need to be sized to each load according to manufacturer’s recommendations.

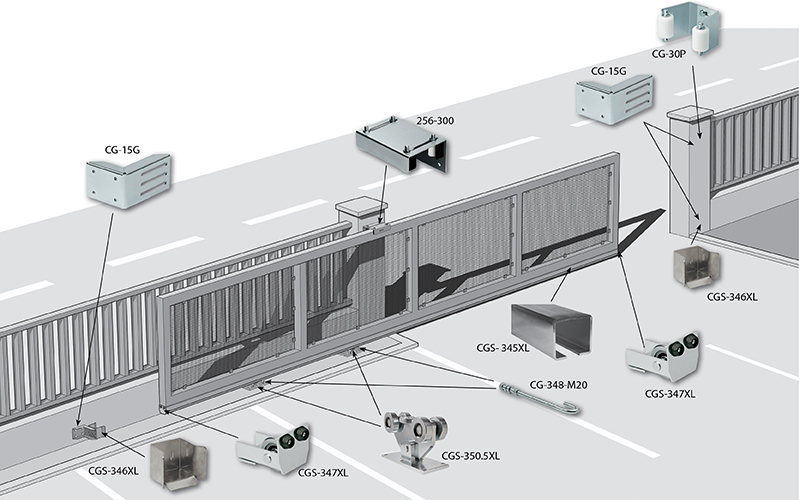

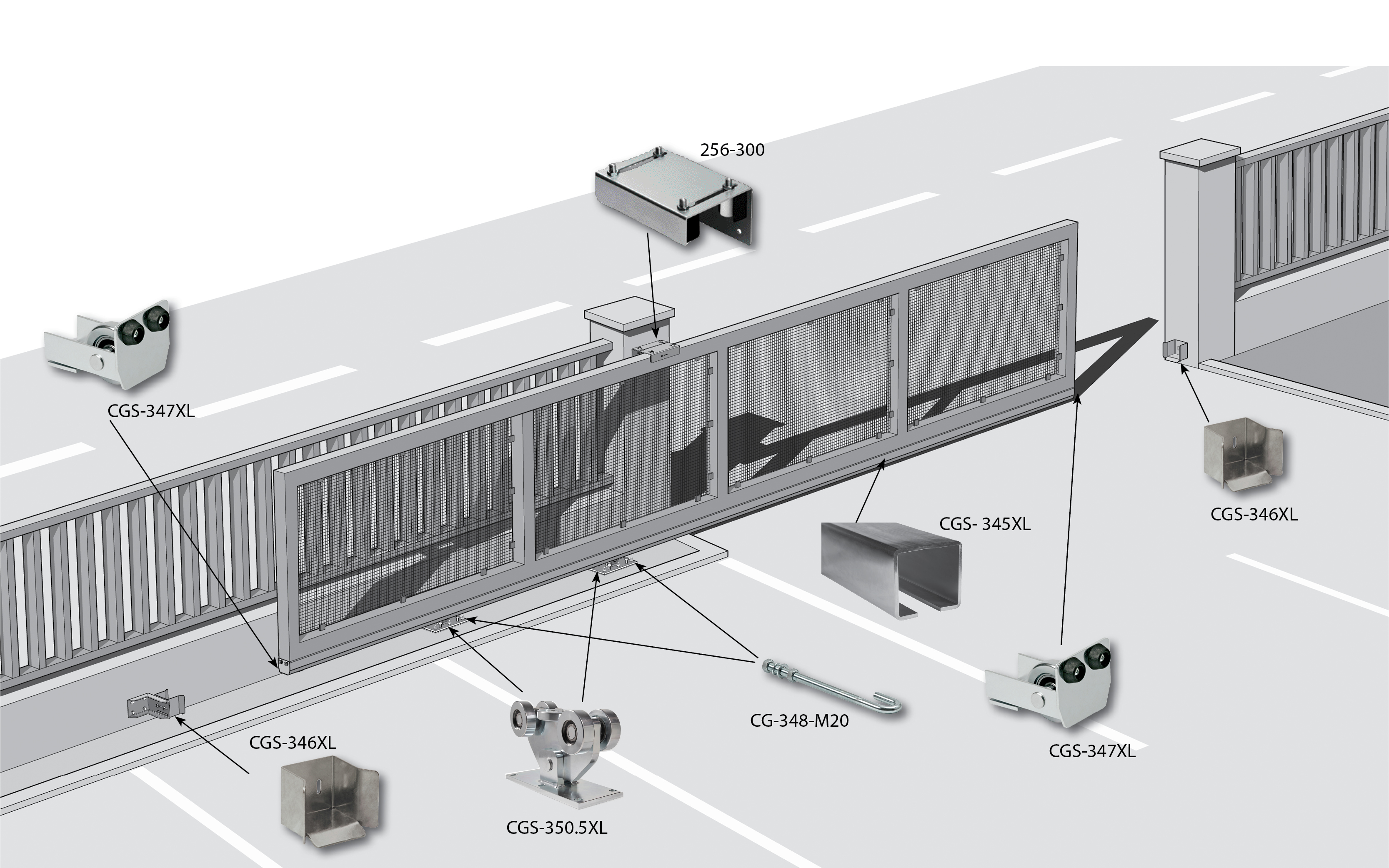

GATE HARDWARE PLACEMENT

TOP GUIDES FOR GATE WITH STRAIGHT TOP

  • 256 - 300

    ADJUSTABLE GUIDING PLATE FOR UP TO 4-1/2" FRAMES

    Heavy duty top guide assembly with 4 covered 1-1/2" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
