Project Gallery
Heavy Duty Aluminum Sliding Gate in California
No unsightly wires or overhead track are needed with DuraGates cantilever sliding gate hardware allowing gates made with…
Read More
Sleek Aluminum Sliding Gate in Pennsylvania
This lightweight aluminum gate uses DuraGates Model CGA-350.5P and is automated using the ARES BFT gate operator. The…
Read More
Aluminum Gate in Business Park
This cantilever sliding security gate was installed by Golden Isles Ornamental, Brunswick, Georgia. DuraGates aluminum hardware model, CGA-350.5P, was chosen…
Read More
Double Slide Gates at Georgia Ranch
These aluminum and wood sliding gates were installed at a Georgia Ranch. The client requested a low maintenance gate so…
Read More
Double Cantilever Driveway Gate in Jefferson City, Missouri
This large entrance required sturdy gates with minimal visible hardware. This client decided to use DuraGates Aluminum Track…
Read More
Residential Wood Picket Cantilever Gate in Naples, Florida
This residential cantilever gate was installed in Naples, Florida. With a driveway opening of approximately 16FT and the weight of…
Read More
Aluminum Sliding Gate at a Residence
This aluminum sliding gate matches perfectly with the style of the home. Notice that the owner had the aluminum track…
Read More
Residential Gate in Hawaii
Aluminum sliding gate cantilevering over a slope going down to the river! This aluminum gate spans an opening of 24ft,…
Read More
Residential Gate in Massachusetts
Wooden gate on a driveway with steep slope made it difficult to use traditional sliding gate hardware. The fabricator built…
Read More

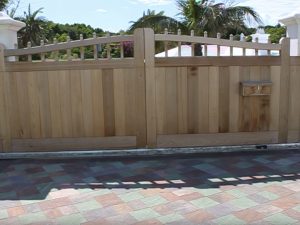

Private Residence in Bermuda
The homeowner fabricated this wood gate himself with the help of a local contractor. The bottom track is…
Read MoreHardware
CGA – 350.5P
Medium Carriage Body
Carriage with 5 nylon wheels and sealed bearings. Large pivot allows for increased weight capacity, smooth sliding and stability. Larger wheel dimensions increase the weight capability and reduce wear and tear between wheels and tracks.
CGA – 345P
Medium Aluminum Track
The tracks are high quality aluminum extrusion and structurally sound which gives them flexibility and permits carrying high loads without distortion. You can build the gate right on the track.
CGA – 347P
End Wheel for Track
The End Wheel bolts into each end of the track and complies with UL325 safety code for automated gates. It gives a finished look and prevents dirt, snow, etc. from getting inside the track and interfering with the operation of the carriages. The wheel allows the gate to roll into the bottom end cup without scraping the paint or galvanized coating.
CGS – 346P
Bottom End Cup
This cup receives the track in either the closed or open position. The beveled leading edge allows for a smooth entry and stop. The cup holds the gate steady, reducing vibrations from wind conditions, etc., and prolongs the life of the carriages and gate operators.
CG – 30M
Gate Receiver, 2” to 3”
The adjustable gate receiver fits the gate frame size. The nylon rollers reduce scraping the paint and galvanized coating. The receiver holds the gate in position while closed, reducing movement caused by the wind or people trying to push through the gate.
CG – 15P
Adjustable Mounting Bracket
The mounting bracket is used for the bottom end cup and gate receiver and is horizontally adjustable to easily align with the gate frame. It allows them to be mounted to the side of the receiving post for UL325 compliance.
CGI – 40
Tension Bars - Stainless Steel
The tension bar acts as a turnbuckle and builds in gate adjustability to moderate long term sag and post movement problems. Fits into 50mm square tubing and can be adapted to use in Imperial tubing sizes.
CG – 05P
Foundation Plate
The foundation plate provides a solid base for leveling the carriage on the pad. It prevents the leveling screws from digging into the pad and causing long term alignment issues. By keeping the carriage bottom from being in direct contact with the concrete pad, it slows down corrosion effects.
CG – 348 – M16
J-Bolt, Galvanized
Galvanized J-Bolts are set into the concrete pad as it is poured. Once it has cured, the carriages are then secured to the pad using these bolts. J-Bolts are the preferred method of anchoring the carriages to the concrete pad. Wedge anchors with two-part epoxy will work but need to be sized to each load according to manufacturer’s recommendations.

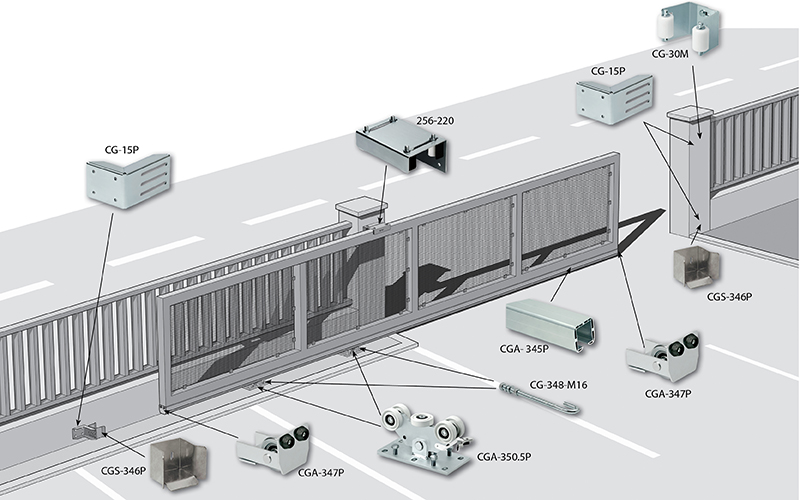

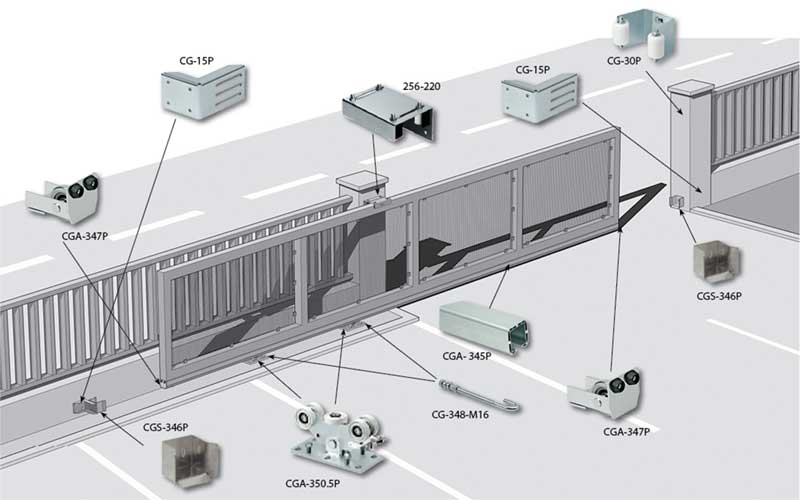

GATE HARDWARE PLACEMENT
TOP GUIDES FOR GATE WITH STRAIGHT TOP
-

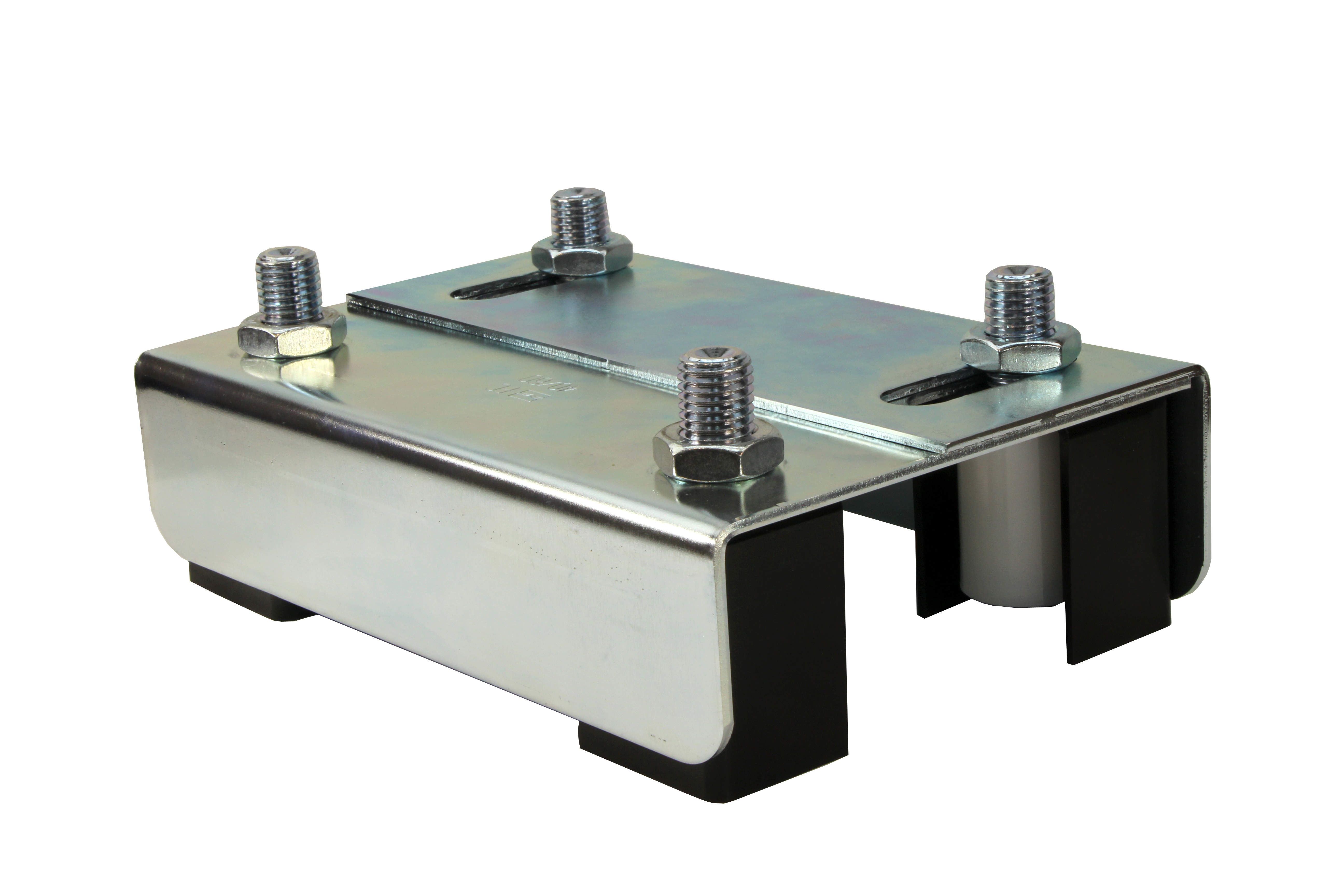

255 - 220 - C
ADJUSTABLE GUIDING PLATE FOR UP TO 2-3/8" FRAMES
Top guide assembly with 4 covered guide rollers, 1-1/4" diameter, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 220
ADJUSTABLE GUIDING PLATE FOR UP TO 3" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/4" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 300
ADJUSTABLE GUIDING PLATE FOR UP TO 4-1/2" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/2" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
TOP GUIDES FOR GATE WITH ARCHED TOP
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
253
10" NYLON SIDE ROLLER 1-1/4" DIA., 2" CLEARANCE
Side rollers are an alternative top guide. Useful especially when arched tops or other architectural features do not easily accommodate horizontal U-channels in the design.
