Project Gallery
Rustic Sliding Gate at Residence in Texas
This Texas homeowner wanted a modern, rustic looking gate installed on their property. The driveway entrance has an incline so…
Read More
Security Gate at Texstar Ford
Aberdeen Gates, Weatherford, TX installed a security gate at a local Ford dealer. Model CGS-350.8P was used since the gate…
Read More
Large Gates at El Toro Memorial Park in California
Two gates were needed at El Toro Memorial Park. One gate was to be installed at the entry, the other…
Read More
Private Residence in Albuquerque, NM
Scott's Fencing Co.,Inc. designed and built this custom slide gate for a brand new home in New Mexico. They utilized…
Read More
Chain Link Sliding Gate at Truth or Consequences Transportation Center
This chain link sliding cantilever gate has been installed at the Truth or Consequences Transportation Center. The gate…
Read More
Gate at Anadarko Petroleum Gas Plant
KRS Fabrications recently fabricated and installed a security gate at the Anadarko Petroleum Gas Plant knowing that the cantilever sliding…
Read More
Residence in New Mexico
This high end residential sliding gate installation features a 20' gate weighing 1300 lbs. This cantilever gate uses…
Read More
Anaheim Convention Center
This set of 5 gates for the Anaheim convention center varies in width from 20ft to 26ft from weights ranging…
Read More
Golisano Children’s Hospital
This project represents an unusual and creative application for DuraGates sliding gate hardware. It is a moving wall to separate…
Read More
Luxury car garage in New Jersey
Due to a sloping driveway, the luxury garage could not use an ordinary sliding gate. The gate weighs…
Read MoreHardware
CGS – 345P
Large galvanized track
Build the gate right on the track. Galvanized steel track’s structural properties allow high loads without distortion. The track is made from low carbon steel alloy for excellent weldability. Available in 20’ and 10’ lengths.
CGS – 350.8P

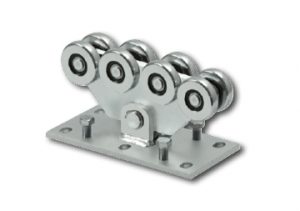

Medium Monobloc Carriage Body
Monobloc carriage body with 8 wheels and sealed bearings. Large pivot allows for increased weight capacity, smooth sliding and stability. Larger wheel dimensions increase the weight capability and reduce wear and tear between wheels and tracks.
CGS – 347P
End Wheel for UL325 Compliance
The End Wheel bolts into each end of the track and complies with UL325 safety code for automated gates. It gives a finished look and prevents dirt, snow, etc. from getting inside the track and interfering with the operation of the carriages. The wheel allows the gate to roll into the bottom end cup without scraping the paint or galvanized coating.
CGS – 346P
Bottom End Cup
This cup receives the track in either the closed or open position. The beveled leading edge allows for a smooth entry and stop. The cup holds the gate steady, reducing vibrations from wind conditions, etc., and prolongs the life of the carriages and gate operators.
CG – 15P
Adjustable Mounting Bracket
The mounting bracket is used for the bottom end cup and gate receiver and is horizontally adjustable to easily align with the gate frame. It allows them to be mounted to the side of the receiving post for UL325 compliance.

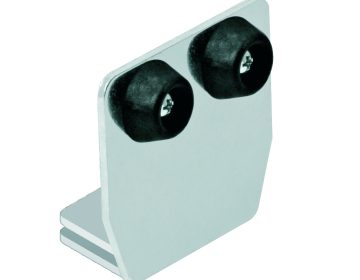

CG – 30M
Gate Receiver, 2” to 3”
The adjustable gate receiver fits the gate frame size. The nylon rollers reduce scraping the paint and galvanized coating. The receiver holds the gate in position while closed, reducing movement caused by the wind or people trying to push through the gate.
CGI – 40
Tension Bars - Stainless Steel
The tension bar acts as a turnbuckle and builds in gate adjustability to moderate long term sag and post movement problems. Fits into 50mm square tubing and can be adapted to use in Imperial tubing sizes.
CG – 348 – M16
J-Bolt, Galvanized
Galvanized J-Bolts are set into the concrete pad as it is poured. Once it has cured, the carriages are then secured to the pad using these bolts. J-Bolts are the preferred method of anchoring the carriages to the concrete pad. Wedge anchors with two-part epoxy will work but need to be sized to each load according to manufacturer’s recommendations.
CG – 05P
Foundation Plate
The foundation plate provides a solid base for leveling the carriage on the pad. It prevents the leveling screws from digging into the pad and causing long term alignment issues. By keeping the carriage bottom from being in direct contact with the concrete pad, it slows down corrosion effects.

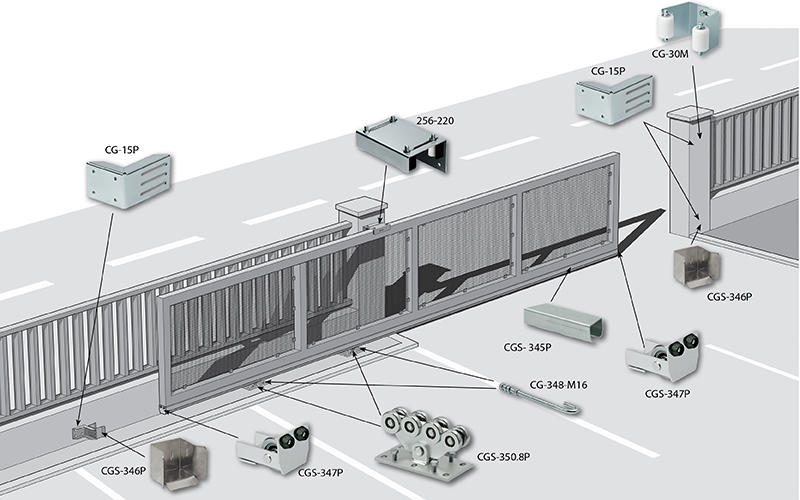

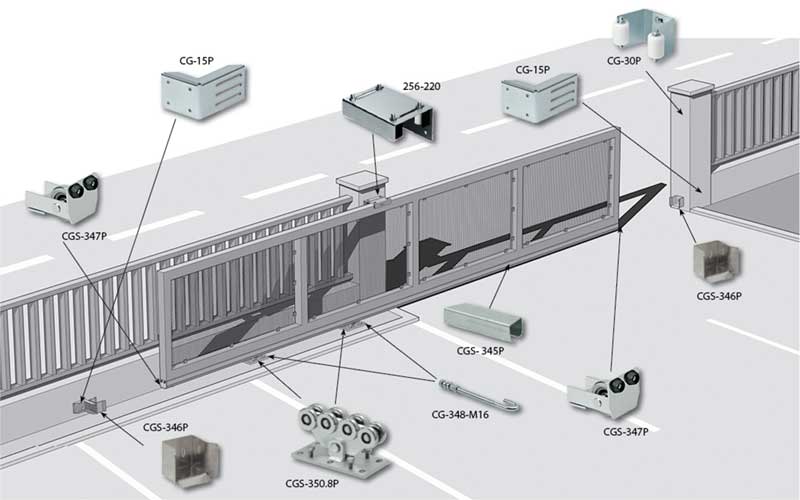

GATE HARDWARE PLACEMENT
TOP GUIDES FOR GATE WITH STRAIGHT TOP
-
255 - 220 - C
ADJUSTABLE GUIDING PLATE FOR UP TO 2-3/8" FRAMES
Top guide assembly with 4 covered guide rollers, 1-1/4" diameter, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 220
ADJUSTABLE GUIDING PLATE FOR UP TO 3" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/4" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
-
256 - 300
ADJUSTABLE GUIDING PLATE FOR UP TO 4-1/2" FRAMES
Heavy duty top guide assembly with 4 covered 1-1/2" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
TOP GUIDES FOR GATE WITH ARCHED TOP
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 254
U-CHANNEL GUIDE RAIL GALVANIZED 1-1/2" ID
Steel guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
CG - 252
Single Guide Roller 1-1/2" diameter
Nylon roller on an adjustable galvanized steel mounting bracket for use with 1-1/2" guide rail.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-
258 - 30
Double Guide Roller 1-1/4" diameter
Nylon rollers on a galvanized steel mounting bracket for use with 1-1/2" guide rail. Mounts on 3" - 4" post.
CG - 237
U-CHANNEL GUIDE RAIL ALUMINUM 1-1/2" ID
Aluminum guide track for side mounted guide rollers. Typically used for gates that have an arched or decorative gate top, protruding pickets, barbed wire, or other top obstructions.
-

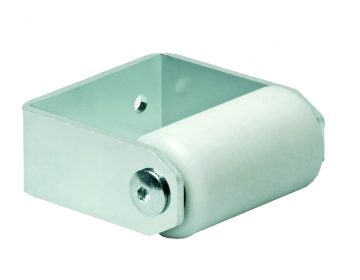

253
10" NYLON SIDE ROLLER 1-1/4" DIA., 2" CLEARANCE
Side rollers are an alternative top guide. Useful especially when arched tops or other architectural features do not easily accommodate horizontal U-channels in the design.
