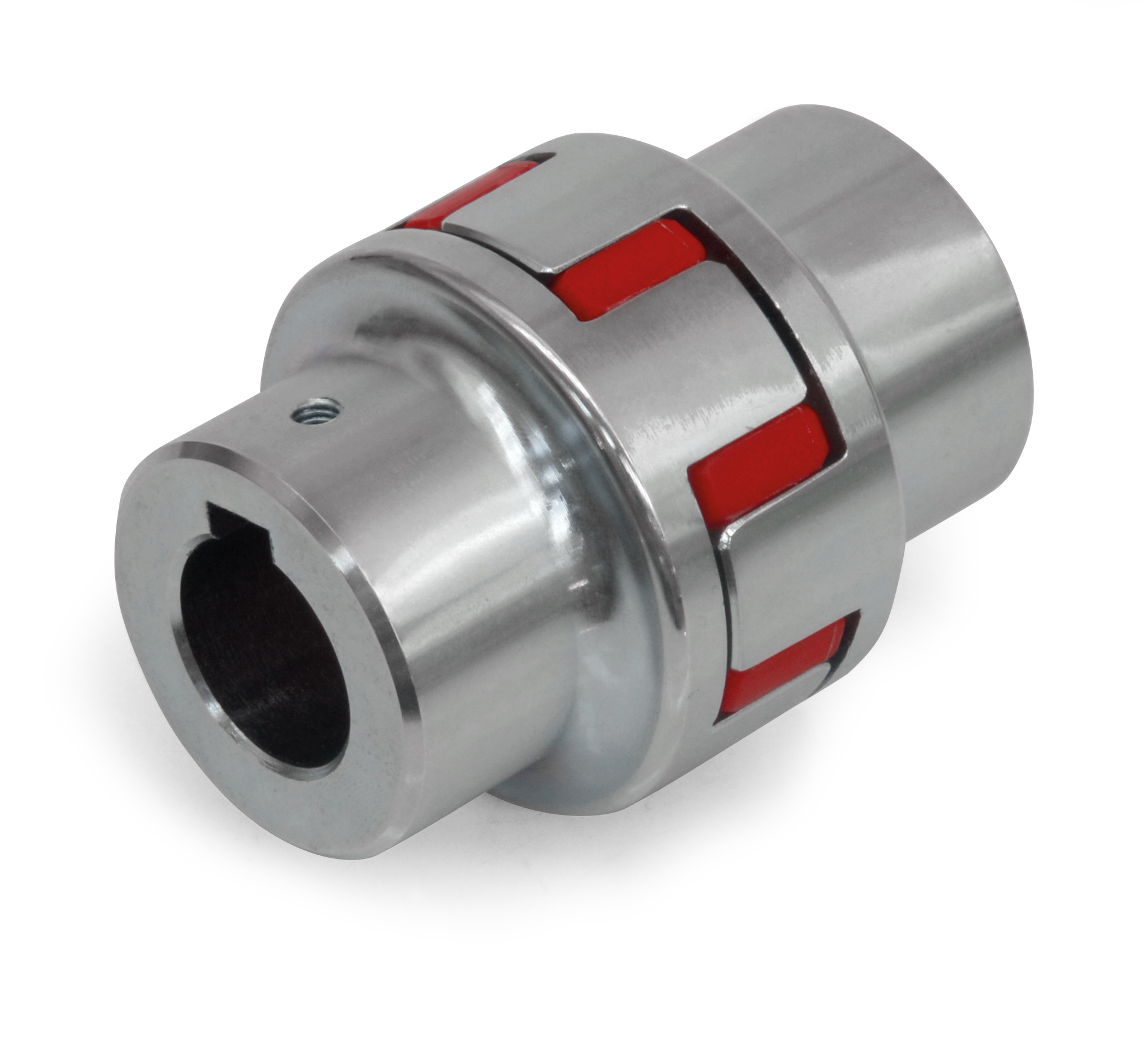

CG-58

This coupling connects the output driveshaft of the gate operator directly to the input driveshaft on the primary carriage. This gives a direct, secure and safe connection between the motor and the gate. Specify gate operator and/or specs on output driveshaft.

Details

Model	CGS-500.8M, CGS-500.8P

CAD Drawing SPEC sheet

Steel Track Models

CGS-KIT150

Included in CGS-KIT150 :

Model	CGS-KIT150

2 CGS-150.5M Galvanized Steel Carriages; 1 CGS-245M-19.68FT Galvanized Steel Track; 1 CGS-347M End wheel for track; 1 CGS-346M Bottom end cup for track; 1 255-220 Top Guide with roller covers;

CAD Drawing SPEC sheet

Steel Track Models

CGS-245M

Small Galvanized Track

Model	CGS-250.8M

The tracks are galvanized and structurally sound which gives them flexibility and permits carrying high loads without distortion. You can build the gate right on the track. The track is made from low carbon steel which allows for excellent weldability.

CAD Drawing SPEC sheet

Steel Track Models

CGS-346G

Bottom End Cup

Model	CGS-350.8G, CGS-500.8G

This cup receives the track in either the closed or open position. The beveled leading edge allows for a smooth entry and stop. The cup holds the gate steady, reducing vibrations from wind conditions, etc., and prolongs the life of the carriages and gate operators.

CAD Drawing SPEC sheet

Steel Track Models

CGS-250.8M

DuraGates CGS-250.8M, Small Carriage, Multiplate Body

Model	CGS-250.8M

Multiplate carriage body with 8 wheels and sealed bearings. Large pivot allows for increased weight capacity, smooth sliding and stability. Larger wheel dimensions increase the weight capability and reduce wear and tear between wheels and tracks.

Spec Sheet Download
