DuraGates Web Configurator Manual
Table of Contents
Manufactured by
Creating a new user account.............................2
Logging into the Configurator .........................3
Configuration / Quote Request Form ............4
Configure your Cantilever System...................5
ARCHITECTURAL
IRON DESIGNS,INC.
950 SOUTH 2ND ST. ✛ PLAINFIELD, NJ 07063
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
DURAGATES.COM

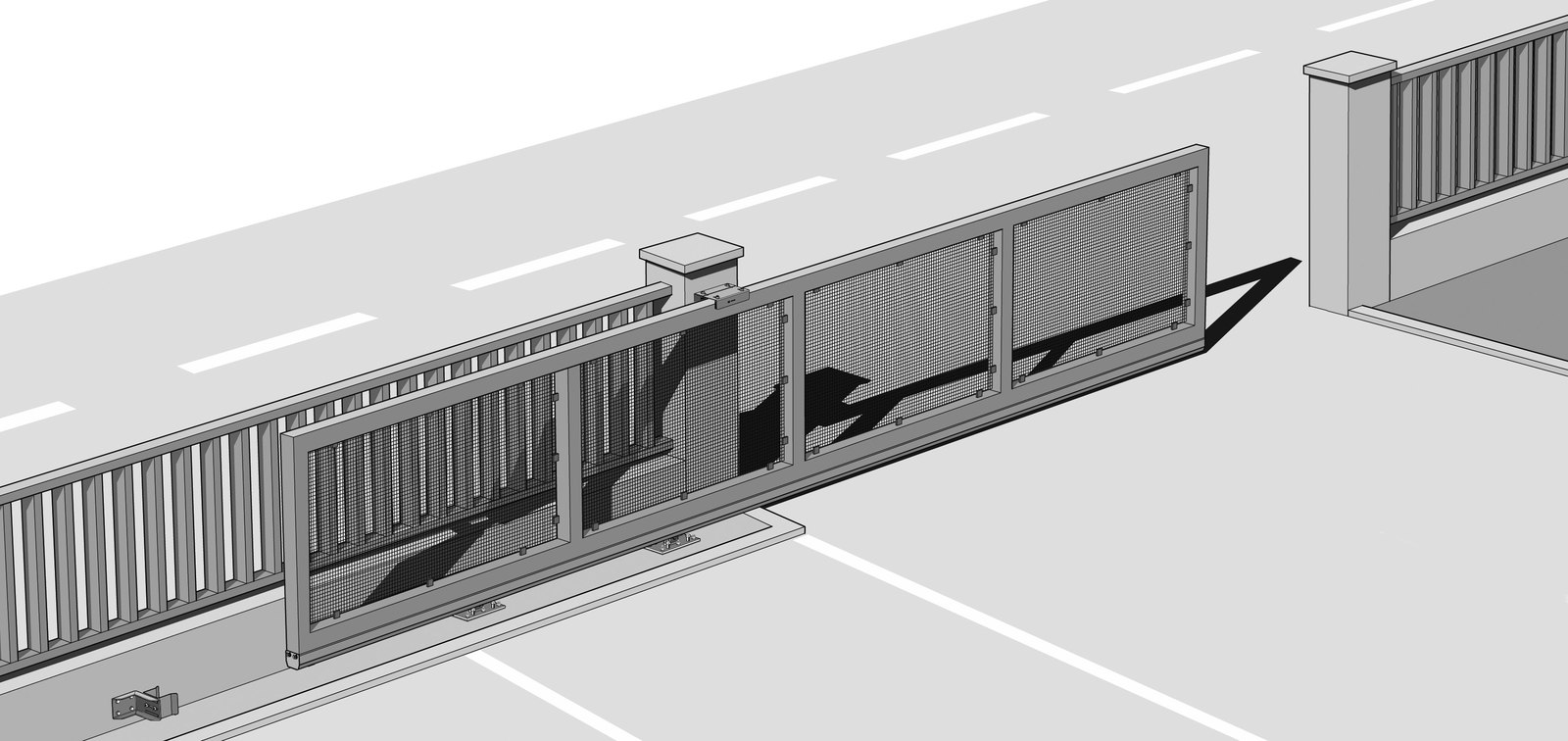

COMUNELLO CANTILEVER HARDWARE
CONFIGURATOR INSTRUCTIONS

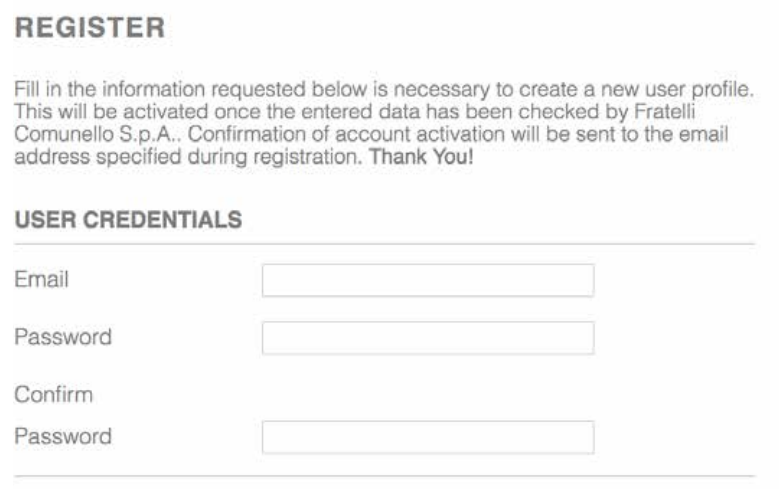

Creating a new user account
After entering your email address and creating a password, you will need the following to complete your
registration. You will receive an email from Comunello, in Italy, in a few days confirming your account has been
set up and is ready to use.
Company Information
Company Name
VAT No (Tax ID or Fake No.)
Contact Information
Phone Number
Cell Number
First Name
Last Name
Address
City
Tax ID or Fake No.
Settings
Language
Select from several
State
Measurement Unit Choose Metric or Imperial
Zip
Country
Communication Preferences
Newsletter
Property
Privacy
Opt In or Out
Click to accept terms
Click to accept
Click the Register Button to complete the process
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
2
COMUNELLO CANTILEVER HARDWARE
CONFIGURATOR INSTRUCTIONS

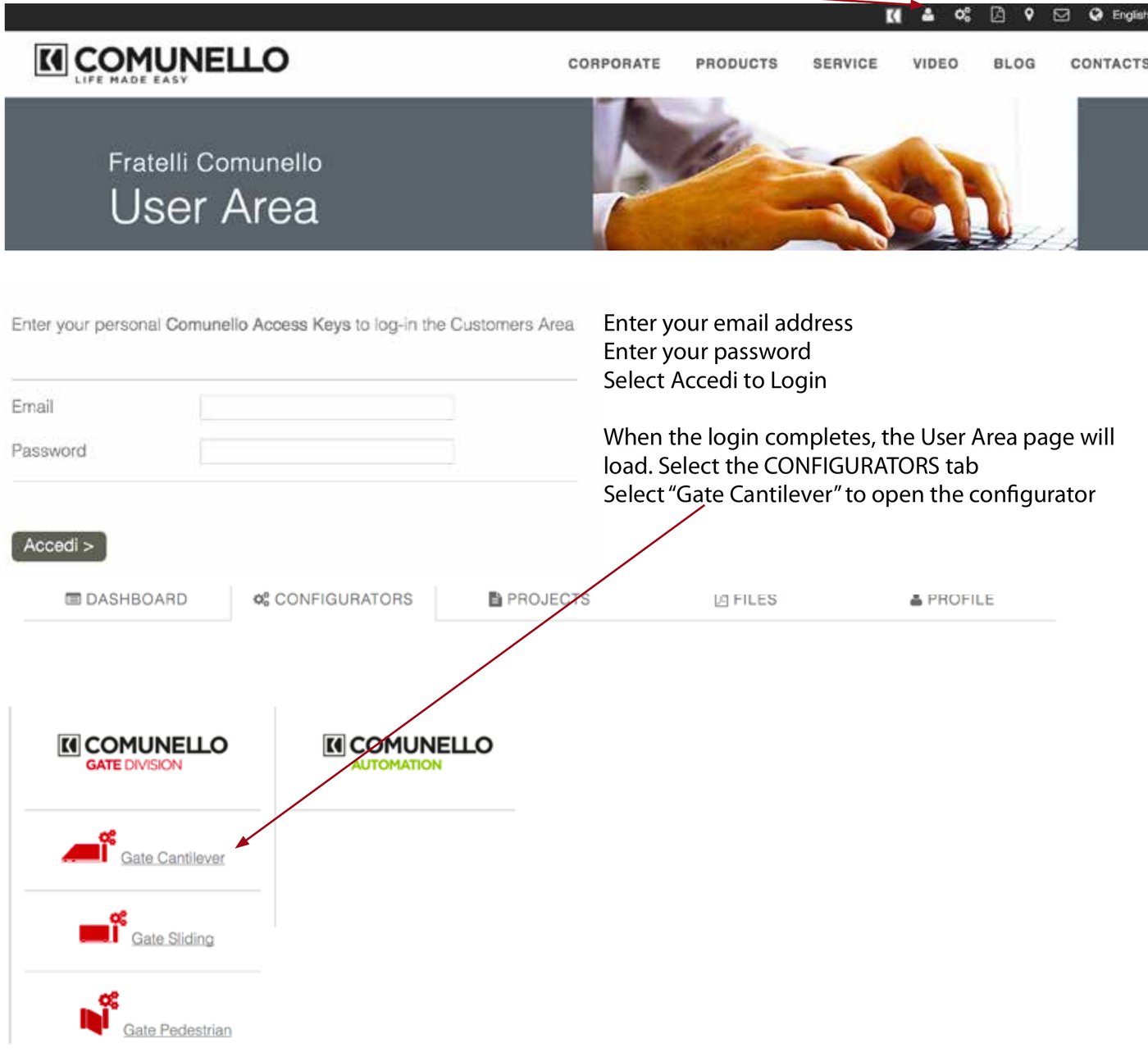

Logging in to the Configurator
In a web browser, go to:
Log in by selecting the "Person Icon" at the top of the page
Enter your email address
Enter your password
Select Accedi to Login
When the login completes, the User Area page will
load. Select the CONFIGURATORS tab
Select “Gate Cantilever”to open the configurator
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
3
CONFIGURATION / QUOTE REQUEST FORM
Company: _______________________________________Contact:__________________ Phone:________________________
Email:____________________________________________________Job Name:______________________________________
DuraGates cantilever hardware is an application specific engineered product. Each gate application should be configured
based on the opening width of the gate (L) and the weight (P) “over the opening”to determine the total gate length (LT),
carriage spacing (I) , and the concrete foundation dimensions.
Please provide the following information for an application specific configuration, parts list, and pricing.
1
MATERIAL OF THE GATE (OR FRAME)
DURAGATES TRACK
MATERIAL REQUIRED
Galvanized Steel
Aluminum
GATE FRAME SIZE
1-1/2" Square
2" Round
2-1/2"
Steel
Wood
Aluminum
Chain Link
Stainless Steel
PVC
Stainless Steel
Other
___________________
2
3
OPENING WIDTH
Typically the post to post measurement
L = __________________ ft. / in.
P = __________________ lbs.
WEIGHT OF THE GATE “over the opening”
If the weight is given for the full gate, specify
the assumed gate length and label it as full
gate weight
Full gate weight______________ lbs.
Assumed gate length__________ ft. / in.
4
5
OPTIMIZE FOR MINIMUM TAIL LENGTH
OR COST?
OPTIMIZE FOR:
Minimum tail length
Lowest hardware cost
ª
Often two or more models will carry
the load, so knowing which is more
important for the application guides us
to the best result.
ª
Space available in “Open”position.
__________________ ft. / in.
IS GATE FLAT ON TOP?
Yes
No_____________________
6
GATE LOCK OPTIONS
7
GATE AUTOMATION / DRIVE SYSTEM
Standard
Manually Operated Gate
Key Operated Lock
Mechanical Code Lock
Carriages
Integrator
Automated Gate
Mag Lock
Carriages
NO LOCK
MEASUREMENTS
GATE WEIGHT (P)
GATE OPENING WIDTH (L)
TOTAL LENGTH (LT)
FOUNDATION
LENGTH (LA)
WIDTH (FA)
DEPTH (PA)
INTERAXIS (I)
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
4
COMUNELLO CANTILEVER HARDWARE
CONFIGURATOR INSTRUCTIONS
Step 1:

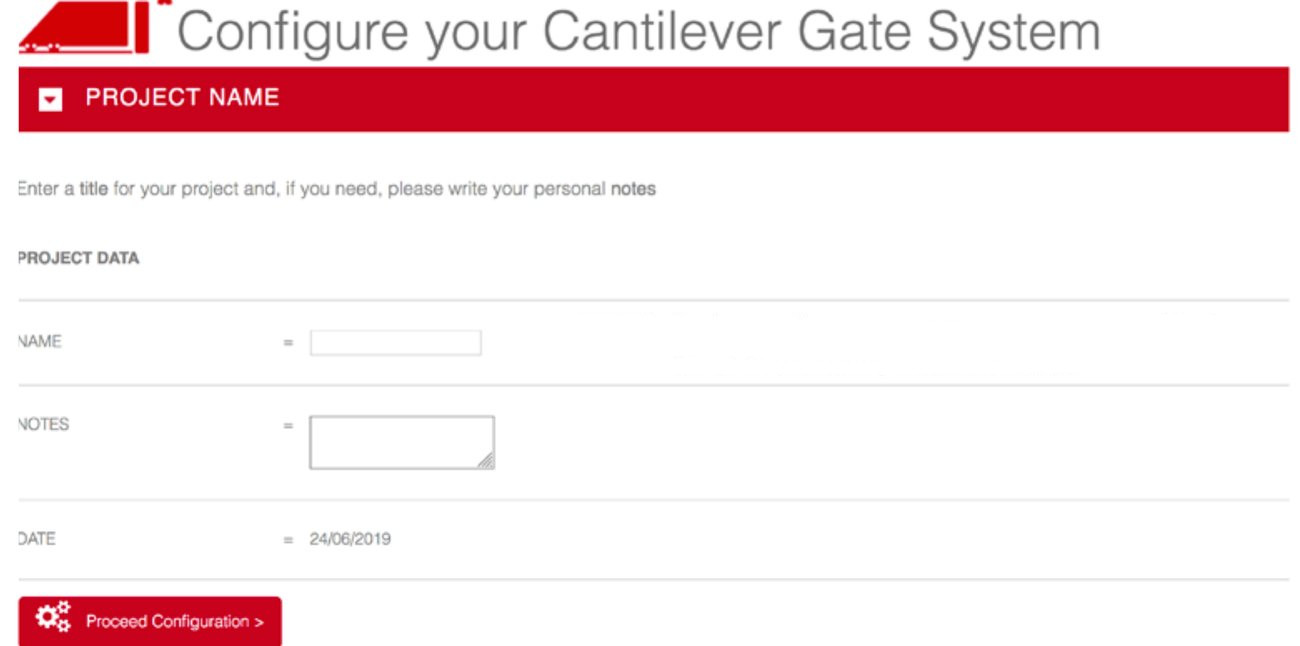

Enter Project Name & Information
NAME: Project or Customer name This will be used in the
name of the configuration emailed.
NOTES: Notes about the project. This field is not included in
the configuration email.
Step 2:

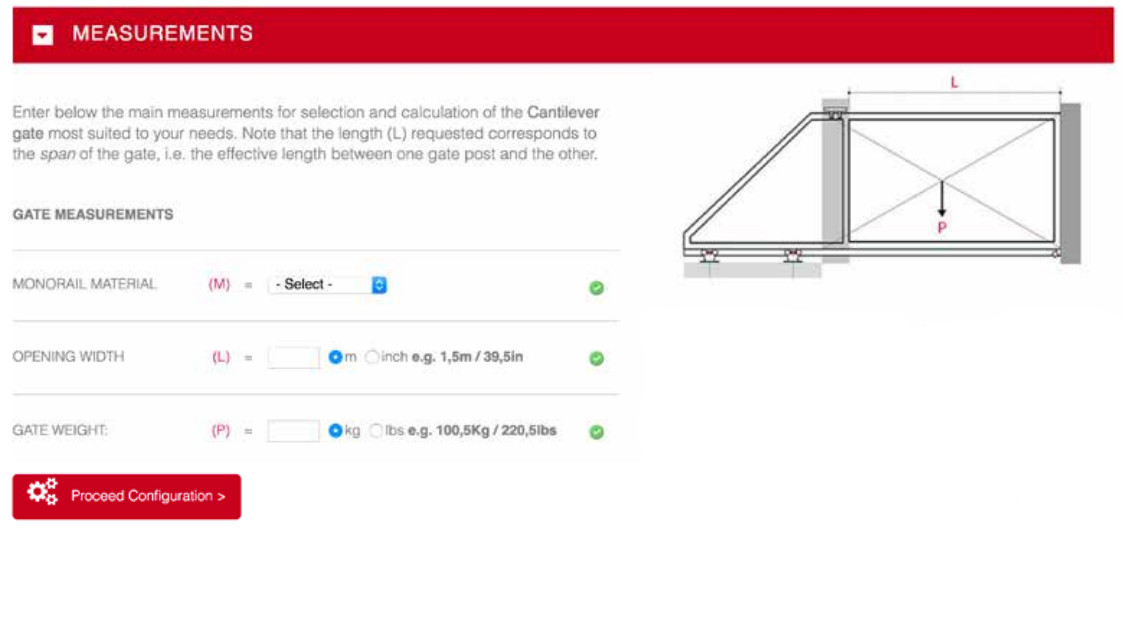

Enter Gate Specifications
SELECT: MONORAIL MATERIAL Menu Options:
Steel • Aluminum • Stainless Steel
Typically the monorail track will be the same
material as the gate frame structure.
ENTER: OPENING WIDTH
Select the appropriate units:
inches or meters
See the Selection Tips and Hints
ENTER: GATE WEIGHT
for more information.
Select the appropriate units: lbs. or kg
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
5
COMUNELLO CANTILEVER HARDWARE
CONFIGURATOR INSTRUCTIONS
Step 3:

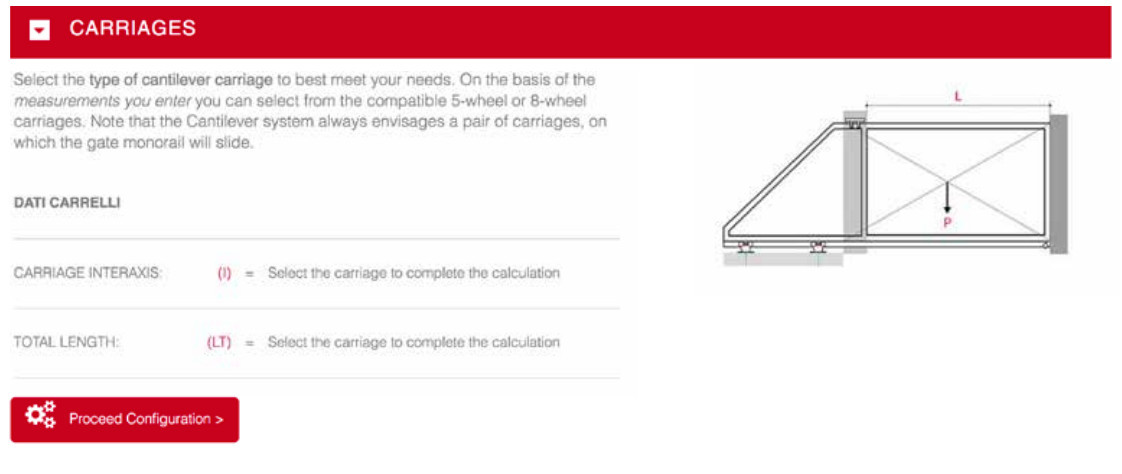

Select Carriages
CAUTION!
Be careful to choose one of the carriages shown
here that are available in the USA.
NOTE: The CGS-KIT150 is available,
but not shown in the configurator.

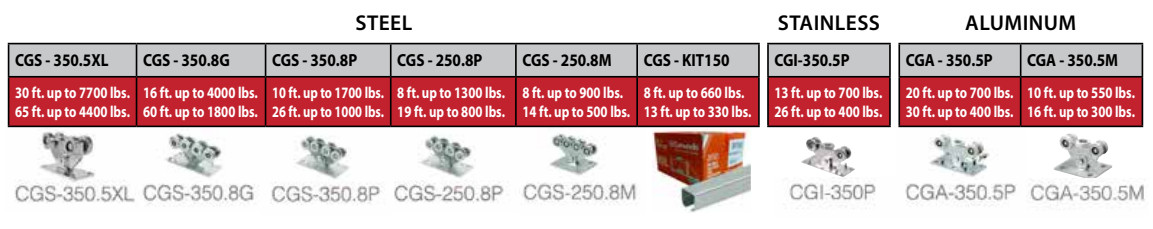

CARRIAGE MODELS AVAILABLE FROM USA STOCK
STEEL
STAINLESS
ALUMINUM
CGA - 350.5P CGA - 350.5M
CGS - 350.5XL
CGS - 350.8G
CGS - 350.8P
CGS - 250.8P
CGS - 250.8M
CGS - KIT150
CGI-350.5P
30 ft. up to 7700 lbs. 16 ft. up to 4000 lbs. 10 ft. up to 1700 lbs. 8 ft. up to 1300 lbs. 8 ft. up to 900 lbs. 8 ft. up to 660 lbs. 13 ft. up to 700 lbs. 20 ft. up to 700 lbs. 10 ft. up to 550 lbs.
65 ft. up to 4400 lbs. 60 ft. up to 1800 lbs. 26 ft. up to 1000 lbs. 19 ft. up to 800 lbs. 14 ft. up to 500 lbs. 13 ft. up to 330 lbs. 26 ft. up to 400 lbs. 30 ft. up to 400 lbs. 16 ft. up to 300 lbs.
CARRIAGE SELECTION: Use the weight capacity and
Gate Opening parameters to choose the carriage best
suited for your application.
The selection criteria for “The Best”label
is usually the least cost solution, and not
always optimal for your specific application.

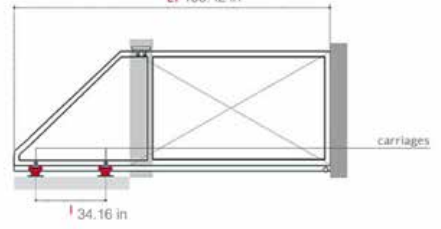

Note: When you select a carriage, the total gate length ”LT”and the
carriage spacing ”I”for the carriage selected is shown in the drawing on
the page. You can select different carriages to see the total gate length
for that choice.
The tail section should between 25% and 40% of the opening width for
a typical gate. Heavy gates and large opening sizes can require longer
tail sections.
Gate length VS hardware cost is the typical trade-off consideration. But
heavy usage and long term durability are important factors as well.
See the Selection Tips and Hints for more information.
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
6
TYPICAL GATES
GALVANIZED STEEL TRACK
MODEL
TYPICAL GATE
INCLUDES
GATE
RANGE
CGS-KIT150
gate opening:
weight oF opening:
totaL gate Length:
12Ft
300LB
18Ft
20ft of track, 2 carriages, 1 end cup,
1 end wheel, and 1 top guide plate
8 ft at 660 lbs
13 ft at 330 lbs
CGS-250.8M
CGS-250.8P
gate opening:
weight oF opening:
totaL gate Length:
16Ft
600LB
22Ft
30ft of track, 2 carriages, 2 end cups,
2 end wheels, 1 top guide plate and 8 J-bolts
8 ft at 900 lbs
14 ft at 500 lbs
gate opening:
weight oF opening:
totaL gate Length:
18Ft
800LB
24Ft
30ft of track, 2 carriages, 2 foundation plates,
2 end cups, 2 end wheels,
1 top guide plate and 12 J-bolts
8 ft at 1300 lbs
19 ft at 800 lbs
CGS-350.8P
CGS-350.8G
CGS-350.5XL
gate opening:
weight oF opening:
totaL gate Length:
24Ft
1200LB
33Ft
40ft of track, 2 carriages, 2 foundation plates,
2 end cups, 2 end wheels,
1 top guide plate and 12 J-bolts
10 ft at 1700 lbs
26 ft at 1000 lbs
gate opening:
weight oF opening:
totaL gate Length:
30Ft
1800LB
39Ft
40ft of track, 2 carriages, 2 foundation plates,
2 end cups, 2 end wheels,
1 top guide plate and 12 J-bolts
16 ft at 4000 lbs
60 ft at 1800 lbs
gate opening:
weight oF opening:
totaL gate Length:
30Ft
3800LB
40Ft
40ft of track, 2 carriages,
1 top guide plate and 12 J-bolts
30 ft at 7700 lbs
65 ft at 4400 lbs
ALUMINUM TRACK
INCLUDES
MODEL
TYPICAL GATE
GATE
RANGE
CGA-350.5M
gate opening:
weight oF opening:
totaL gate Length:
16Ft
300LB
21Ft
30ft of track, 2 carriages, 2 end cups,
2 end wheels, 1 top guide plate and 8 J-bolts
10 ft at 550 lbs
16 ft at 300 lbs
gate opening:
weight oF opening:
totaL gate Length:
24Ft
600LB
32Ft
CGA-350.5P
40ft of track, 2 carriages, 2 foundation plates,
2 end cups, 2 end wheels,
1 top guide plate and 12 J-bolts
20 ft at 700 lbs
30 ft at 400 lbs
STAINLESS TRACK
INCLUDES
MODEL
TYPICAL GATE
GATE
RANGE
CGI-350.5P
gate opening:
weight oF opening:
totaL gate Length:
20Ft
300LB
26Ft
30ft of track, 2 carriages, 2 foundation plates,
2 end cups, 2 end wheels,
1 top guide plate and 12 J-bolts
13 ft at 700 lbs
26 ft at 400 lbs
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
7
COMUNELLO CANTILEVER HARDWARE
CONFIGURATOR INSTRUCTIONS
Step 4:

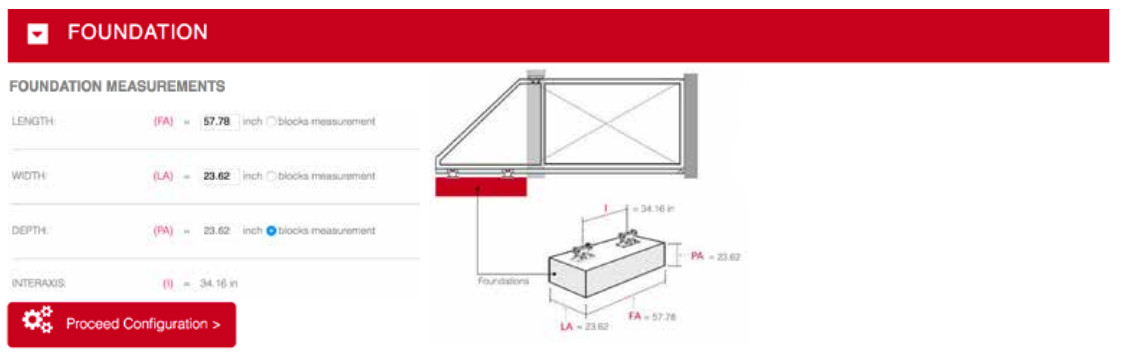

Review the Carriage Selection & Foundation Drawing
The concrete pad acts as the
counterbalance weight for the gate,
allowing for shorter tail sections
than traditional hardware.
The amount of concrete
needed, in YARDS
LA PA FA
*
*
________________
32,236
Step 5:

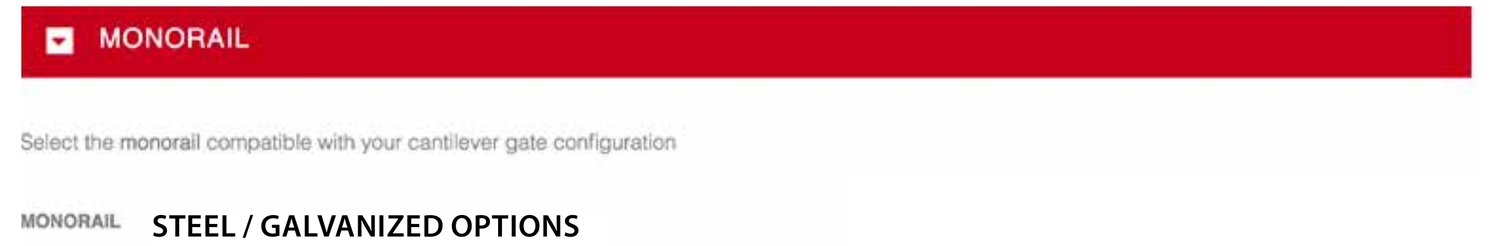

Select Track Length

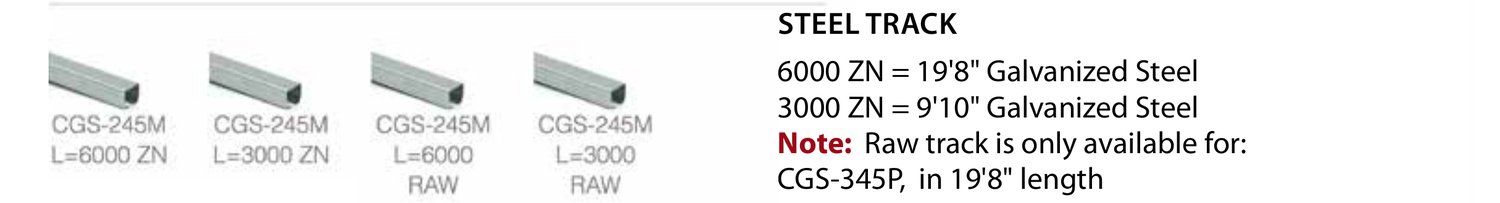

STEEL / GALVANIZED OPTIONS
STEEL TRACK
6000 ZN = 19'8" Galvanized Steel
3000 ZN = 9'10" Galvanized Steel
Note: Raw track is only available for:
CGS-345P, in 19'8" length
CGS-345XL, in 9'10" length

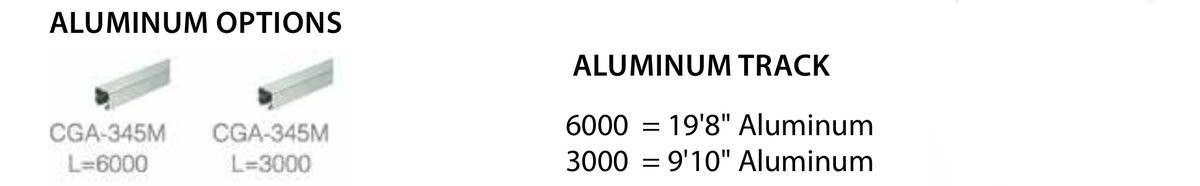

ALUMINUM OPTIONS
ALUMINUM TRACK
6000 = 19'8" Aluminum
3000 = 9'10" Aluminum

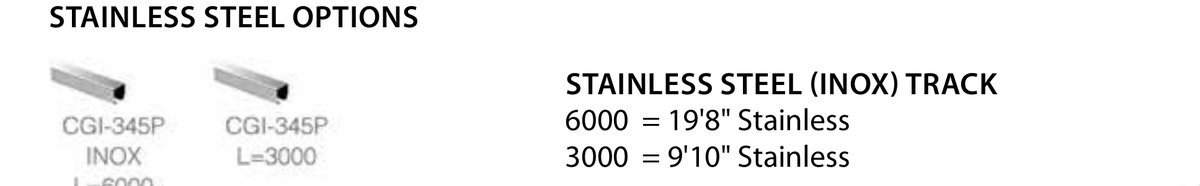

STAINLESS STEEL OPTIONS
STAINLESS STEEL (INOX) TRACK
6000 = 19'8" Stainless
3000 = 9'10" Stainless
Make Monorail Selection
Select PROCEED CONFIGURATION
to continue
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
8
COMUNELLO CANTILEVER HARDWARE
CONFIGURATOR INSTRUCTIONS
Step 6:

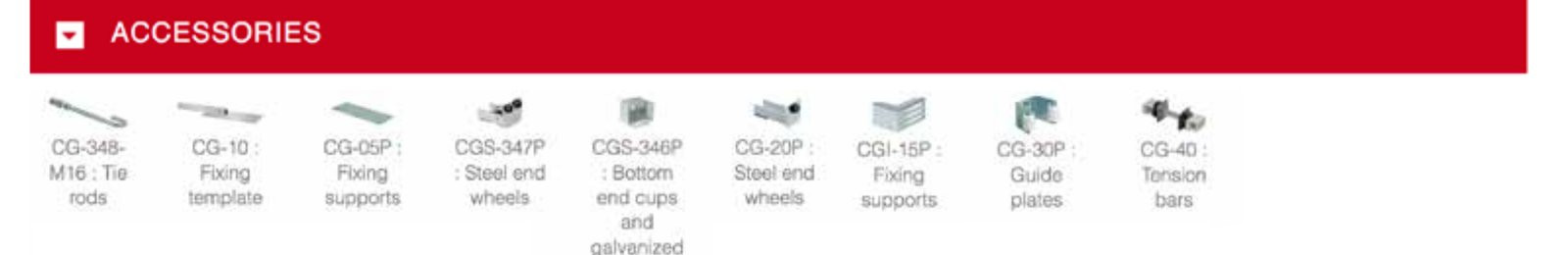

Select Accessories
Accessory and Safety Selections do not affect the
configuration. No selection is required to proceed.
CG-348
CG-10
Tie Rods: J-Bolts set into newly poured concrete are the best method of anchoring the carriages to the pad.
Template: Not available in the USA but can be ordered if planning on installing multiple gates.
Fixing Supports: Foundation Plates make it easier to level and align the carriages, but are not required.
CG-05
CGS-347
End Wheels: Serve two functions: 1) covering the end of the track for US325 compliance when the gate is automated,
2) assisting the gate to seat effortlessly into the receiver to stabilize the gate in the open and closed positions, and 3)
keep dirt and debris outof the track for smoother operation.
CGS-346
End Cups: To stabilize the gate in the open and closed positions. For gates typically closed except for pass throughs,
only one is needed. For gates standing open, then two should be used.
CG-20
CG-15
Not available in the USA.
Heavy duty ”L“ bracket to mount accessories to the side of the fence post or column.
CG-30
Plates
Slide Gate receiver to be positioned near the top of the gate on the receiving post or column. The size of this Guide
receiver is matched with the gate frame, and not the track model.
CG-30M - Fits 2" to 3" frames
CG-30P - Fits 3⅜" to 4½" frames
CG-30G - Fits 4" to 6" frames
CG-40
The tension bar acts as an adjustable turnbuckle in the gates tail section. It is made to fit into 40mm tubing and must
be adapted for US tubing sizes.
Step 7:

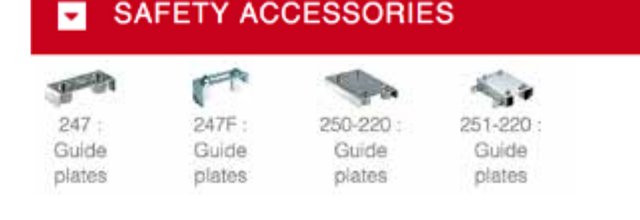

Select Top Guide

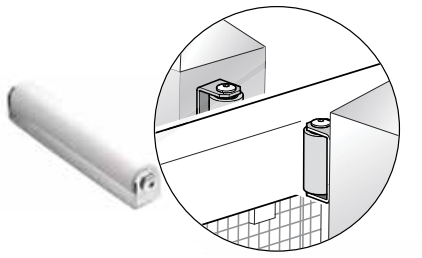

GALVANIZED STEEL TOP GUIDES
247
For 1¼" to 2⅜" frames
For up to 2⅜" frames
For up to 3" frames
For up to 4½" frames
Open rollers, weld mount
255-220
256-220
256-300
Covered rollers, weld mount
Covered rollers, bolt-on mount
Covered rollers, bolt-on mount
STAINLESS STEEL TOP GUIDES
CGI-251 For 2½" to 4" frames
Covered rollers, bolt-on mount

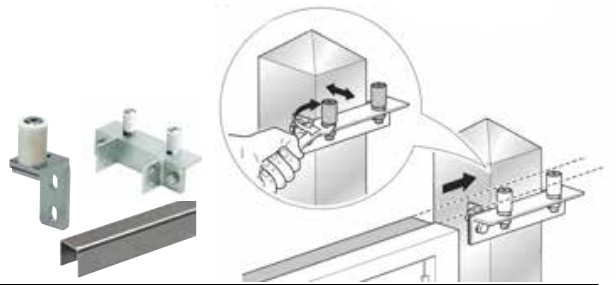

SIDE MOUNTED MONORAIL GUIDES (Also used for gates with an arched top)
CG-252
Adjustable
Single Guide Roller
Double Guide Roller
Monorail, Galvanized
Side Roller, 10" Nylon
CG-258-30 For 3" to 4½" frames
CG-254
253-40
9'10" lengths
2 per gate required
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
9
COMUNELLO CANTILEVER HARDWARE
CONFIGURATOR INSTRUCTIONS

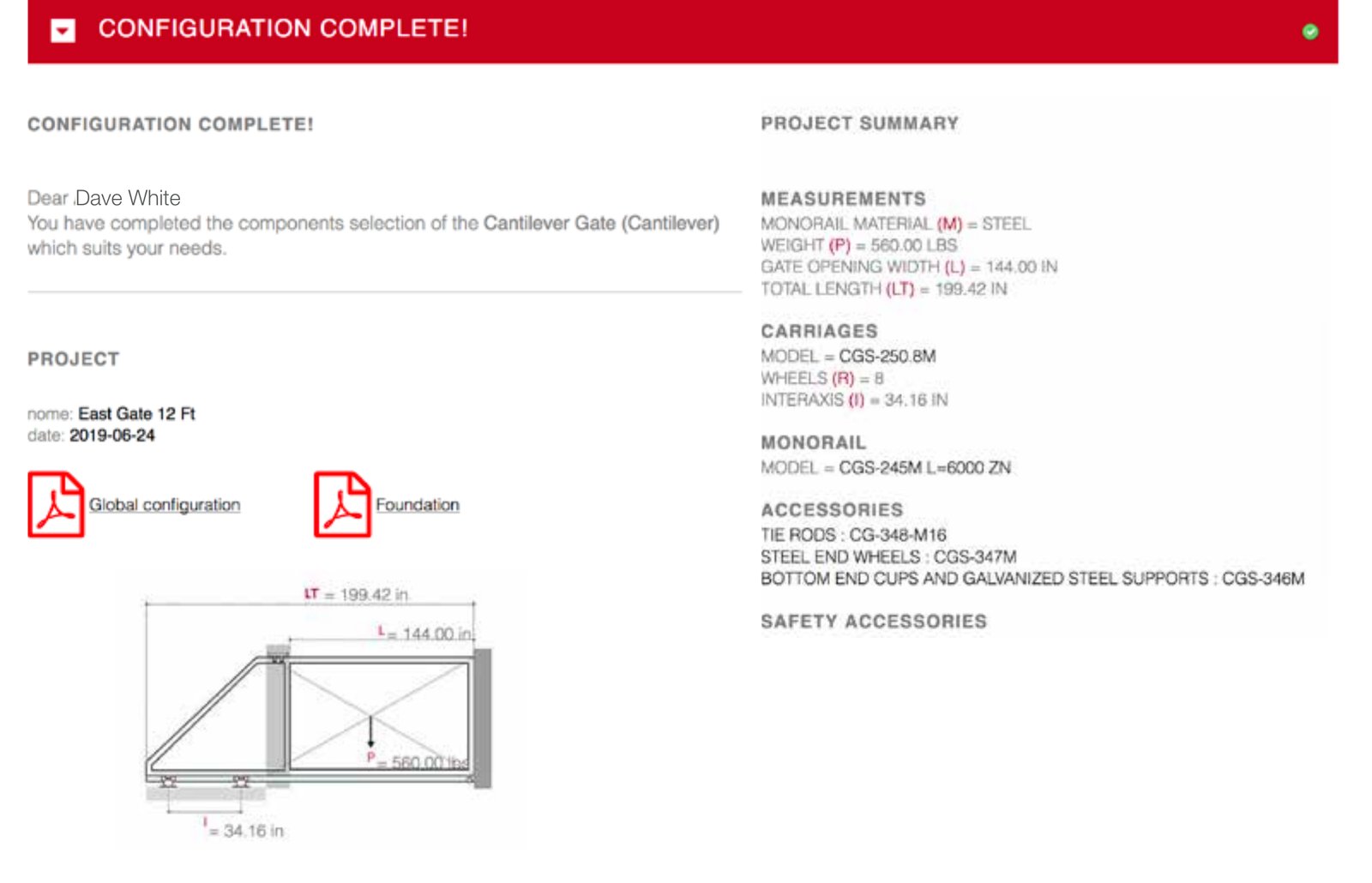

Step 8:
Configuration Complete
Dave White

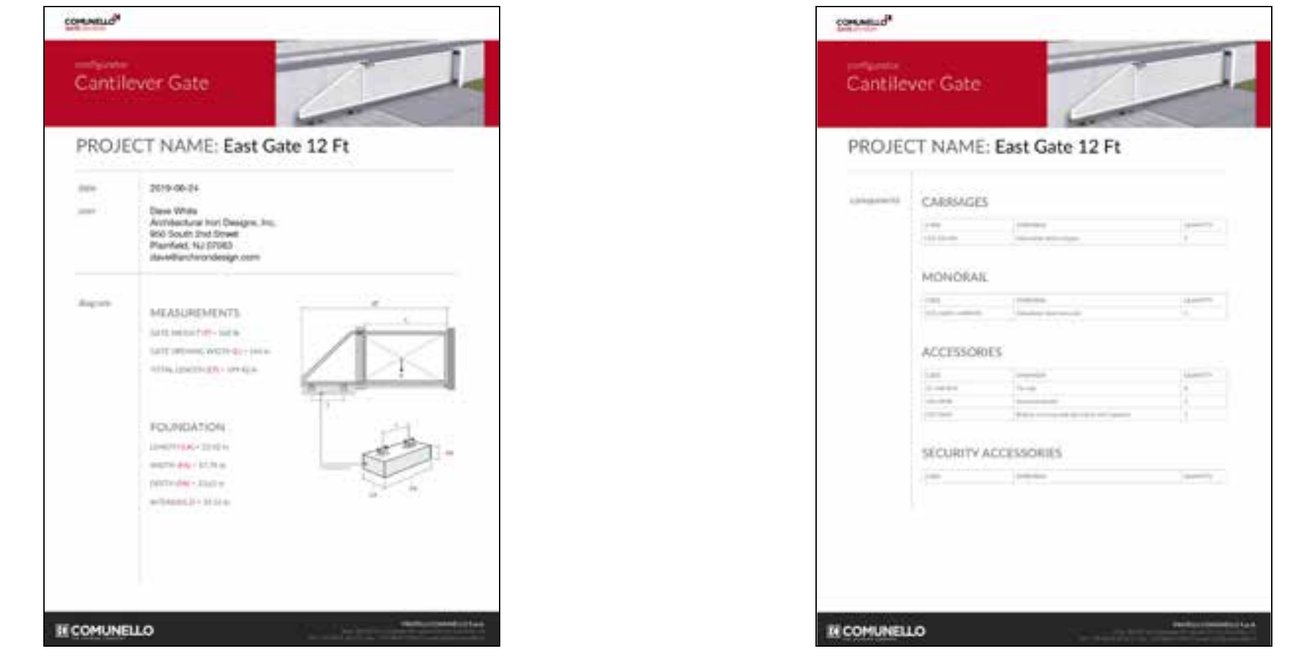

You can open or save the Global Configuration or Foundation PDF’s if desired, but an email with the Global
Configuration will be sent to the login email address.
®
T: 800.784.7444 ✛ T: 908.757.2323 ✛ F: 908.757.3439
10
