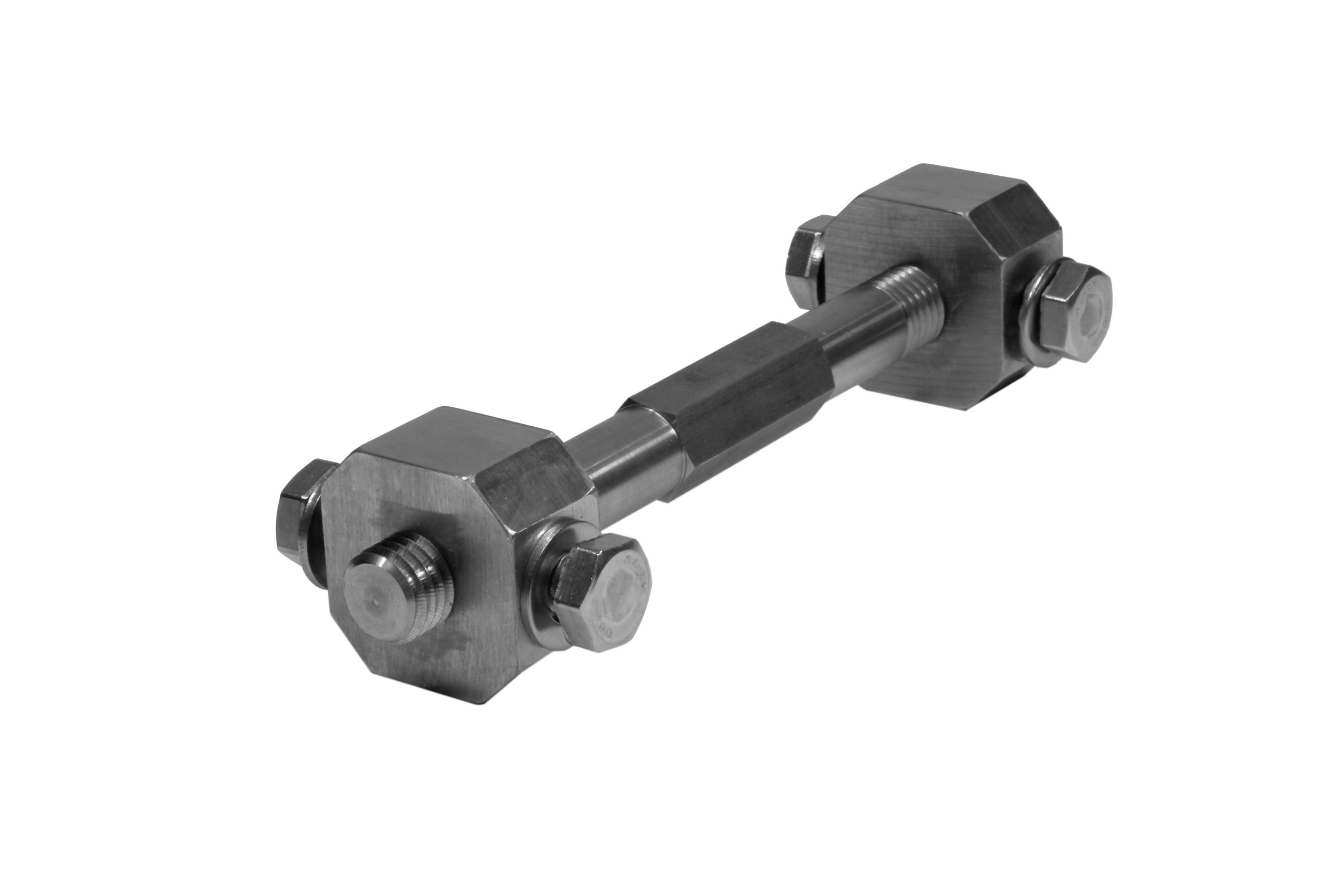

The tension bar acts as a turnbuckle and builds in gate adjustability to moderate long term sag and post movement problems. Fits into 50mm square tubing and can be adapted to use in Imperial tubing sizes.
CGI-40-2IN
Tension Bars – Stainless Steel for 2″ sq. tube or 2-3/8″ dia. tube
The mounting bracket is used for the bottom end cup and gate receiver and is horizontally adjustable to easily align with the gate frame. It allows them to be mounted to the side of the receiving post for UL325 compliance.
Top guide assembly with 4 covered guide rollers, 1-1/4" diameter, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
This optional upper end cup can be mounted on the post to receive the gate in addition to the bottom end cup.
Heavy duty top guide assembly with 4 covered 1-1/2" diameter guide rollers, to guide the gate through the opening. Complies with ASTM F2200 and UL325 safety standards. Minimal forces act on the top guide, except for high wind variability. Two top guides are recommended in high wind conditions, privacy panel styles, and very heavy gates.
