    CG-PBRP

    CG-PBRP

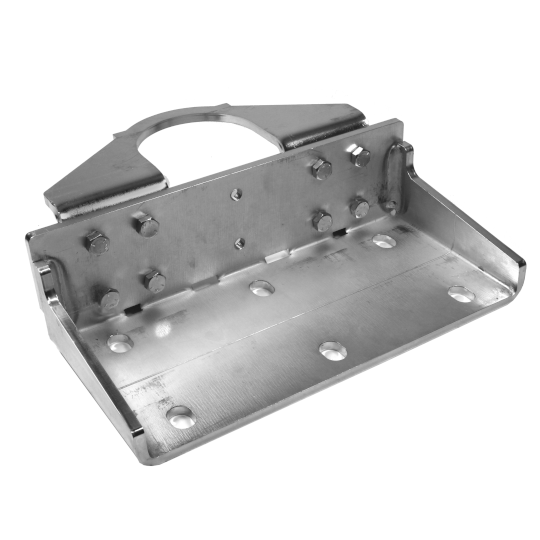

    Post Mount Bracket for Large “P” Carriages, Use with 4″ dia. Tubing

    SKU CG-PBRP Category

    Cantilever post mount bracket options for use with Comunello "P" series carriages. Securely attach each carriage to a 4-in round or 4-in square support post. The sturdy galvanized steel brackets offer a traditional installation method for the installer, allowing for an easier installation by eliminating the need to pour a large foundation. Post brackets also offer easier adjustment and gate alignment. No cement pad is required, but we recommend that each cement embedded post have a minimum hole diameter of 20" and a minimum depth of 48".

    Details

    Model

    , , , , ,

    CG-05P
    CAD Drawing SPEC sheet
    CG-05P
    Foundation Plate
    Model

    , , , ,

    The foundation plate provides a solid base for leveling the carriage on the pad. It prevents the leveling screws from digging into the pad and causing long term alignment issues. By keeping the carriage bottom from being in direct contact with the concrete pad, it slows down corrosion effects.
    Read more
    CGS-346G
    CAD Drawing SPEC sheet
    CGS-346G
    Bottom End Cup
    Model

    ,

    This cup receives the track in either the closed or open position. The beveled leading edge allows for a smooth entry and stop. The cup holds the gate steady, reducing vibrations from wind conditions, etc., and prolongs the life of the carriages and gate operators.
    Read more
    CGS-347P
    CAD Drawing SPEC sheet
    CGS-347P
    End Wheel for UL325 Compliance
    Model

    , ,

    The End Wheel bolts into each end of the track and complies with UL325 safety code for automated gates. It gives a finished look and prevents dirt, snow, etc. from getting inside the track and interfering with the operation of the carriages. The wheel allows the gate to roll into the bottom end cup without scraping the paint or galvanized…
    Read more
    CGS-245P
    CAD Drawing SPEC sheet
    CGS-245P
    Medium Galvanized Track
    Model

    The tracks are galvanized and structurally sound which gives them flexibility and permits carrying high loads without distortion. You can build the gate right on the track. The track is made from low carbon steel which allows for excellent weldability.
    Read more
