CGI – 350.5P

Project Gallery

Hardware

  • CGI – 350.5P

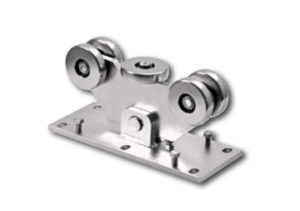

    Medium Monobloc Carriage Body

    Monobloc carriage body with 5 wheels and sealed bearings. Large pivot allows for increased weight capacity, smooth sliding and stability. Larger wheel dimensions increase the weight capability and reduce wear and tear between wheels and tracks.

  • CGI – 345P

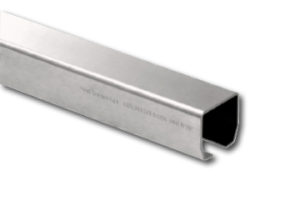

    Medium Stainless Steel Track

    Stainless steel tracks are structurally sound which gives them flexibility and permits carrying high loads without distortion. You can build the gate right on the track.

  • CGI – 347P

    End Wheel for Track

    This wheel mounts to the end of the track and covers the track end to give a clean finished look. It also prevents dirt, snow, rain, etc., from getting inside the track. The bottom wheel of the cup doesn’t engage with the ground but glides gently into the bottom end cup in the closed position.

  • CGI – 346P

    Bottm End Cup for Track

    This cup will receive the track in the closed or open position. The beveled edge allows for a smooth stop.

  • CG – 30P

    Upper Adjustable End Cup

    This optional upper end cup can be mounted on the post to receive the gate in addition to the bottom end cup.

  • CG – 15P

    Adjustable Wall Mounting Bracket

    This optional wall bracket accessory can be used to mount the bottom end cup or upper end cup on either side of the gate.

  • CGI – 348 – M16

    Threaded Tie Rod for Carriage

    These bolts allow secure fastening of the carriages to the ground. Highly recommended.

  • CGI – 40

    Tension Bars - Stainless Steel

    This tension bar is made of stainless and can be used as a counter balance brace instead of a full gate.This will allow for future gate adjustment.

  • CGI – 05P

    Foundation Plate

    A recommended accessory to mount the carriage to. This prevents the carriage from coming in direct contact with the ground and also gives a more finished look to the installation. It will also provide a sturdier base for the carriage and assist in leveling.

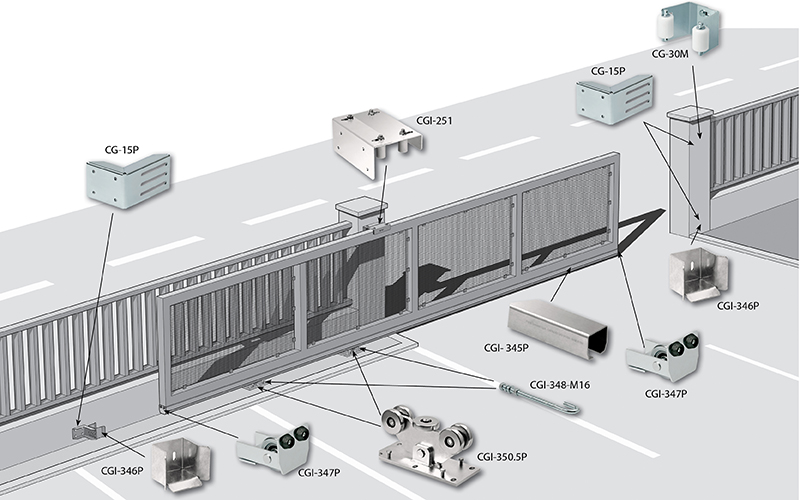

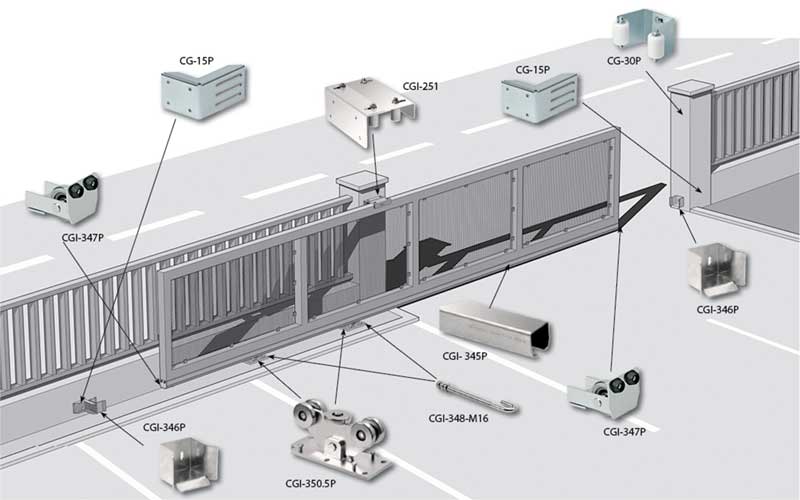

GATE HARDWARE PLACEMENT

TOP GUIDES FOR GATE WITH STRAIGHT TOP

  • CGI - 251

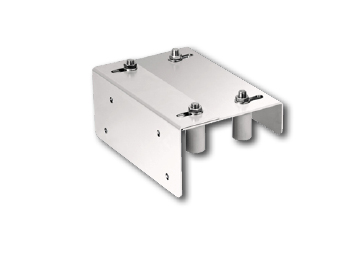

    Adjustable Guiding Plate

    Stainless steel guiding plate with nylon rollers used to support the gate on the top. Mount on posts on pillars.

  • 256 - 220

    ADJUSTABLE GUIDING PLATE WITH ROLLER COVER

    This guide plate helps comply with ASTM F2200 and UL325 safety standards. The roller covers block pinch point areas within the guide. Use on frames up to 3-1/8" wide.

  • 256 - 300

    ADJUSTABLE TOP GUIDING PLATE WITH ROLLER COVER

    This guide plate helps comply with ASTM F2200 and UL325 safety standards. The roller covers block pinch point areas within the guide. Use on frames up to 4-3/4" wide.

TOP GUIDES FOR GATE WITH ARCHED TOP

  • CG - 252

    Adjustable Support Roller

    Adjustable roller for use with CG-254 monorail.

    CG - 254

    GALVANIZED STEEL MONORAIL TRACK

    Steel monorail track for used with gates that have an arched or decorative gate top. Use in conjunction with item CG-252 roller.

  • 258 - 30

    Adjustable Support Roller

    Adjustable roller for use with CG-254 monorail.

    CG - 254

    GALVANIZED STEEL MONORAIL TRACK

    Steel monorail track for used with gates that have an arched or decorative gate top. Use in conjunction with item 258-30.
